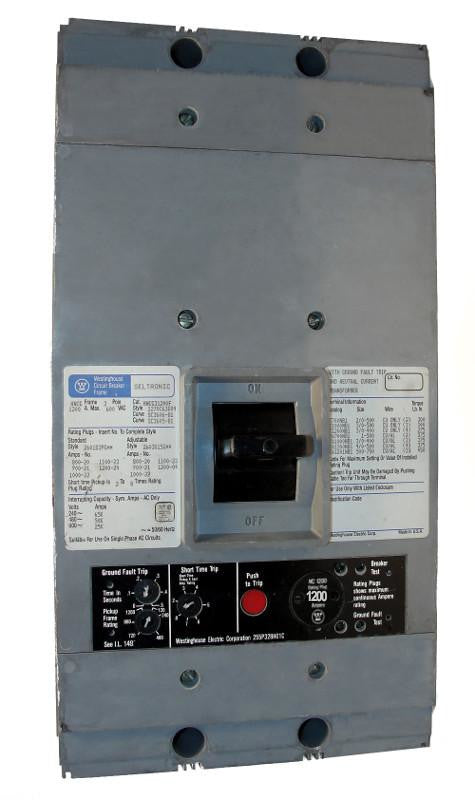

HNCG31200 (HNCG31200F w1200 Amp Rating Plug)

Call for Price

New Surplus

Click for Info
$44,495.00

Certified Reconditioned

Click for Info
$4,795.00

Product Description

HNCG Frame Style, Molded Case Circuit Breaker, Mark 75, LSG Function Non-Interchangeable Trip Unit, High Interrupting Capacity, 3 Pole, 600VAC @ 50/60HZ, High Interrupting Style, Interrupting Ratings: 65 Kiloampere @ 240VAC, 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, with 1200 Amp Rating Plug, Line and Load End Terminals Standard

L – Adjustable Long Delay Pickup (By Adjustable Rating Plug)

S – Adjustable Short Delay Pickup with Fixed Short Delay Time (I2t Response) or Adjustable Short Time (Flat Response)

G – Adjustable Ground Fault Pickup with Adjustable Ground Fault Delay (Flat Response)

Look under Parts & Accessories to order accessories used to create additional configurations for this unit.

Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.

Specifications


Manufacturer Westinghouse / Cutler-Hammer
Warranty One Year
Frame Type NC
Amperage 1200
Poles 3
Voltage Max 600
Interrupting Capacity Rating 65 Kiloampere @ 240VAC, 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC
Trip Setting 2400-9600
Standard Lug Type Line and Load
