Eaton / Cutler-Hammer: M-Frame

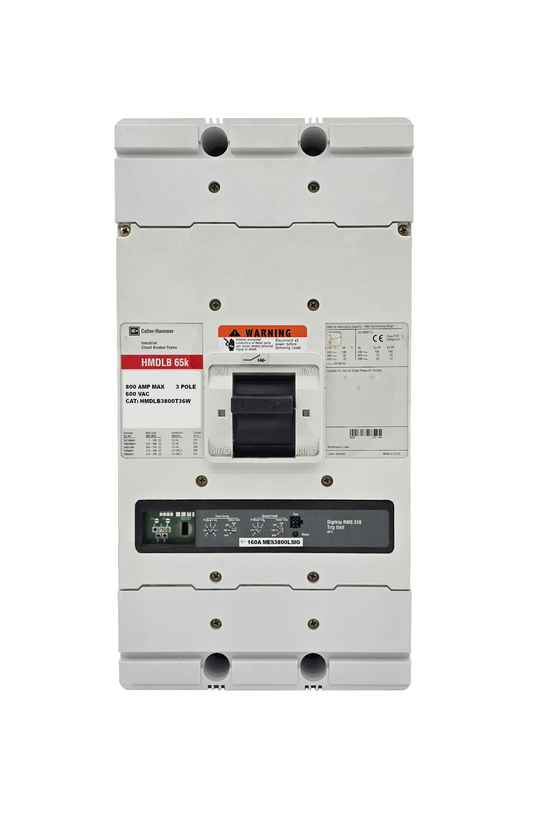

Product Description Specs are as follows: HMDLB Frame Style, Molded Case Circuit Breaker, LSIG Function Non-Interchangeable Trip Unit, Suitable for Reverse Feed, 800 Ampere Max at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 100 Kiloampere @ 240VAC, 65 Kiloampere @ 480VAC, 35 Kiloampere @ 600VAC, Rating Plug Not Included, Without Terminals. ATTENTION: This unit requires a rating plug in order to function. Please contact us to check stock and pricing of rating plugs if you need one installed before ordering. L – Adjustable Long Delay Pickup (By Adjustable Rating Plug) S – Adjustable Short Delay Pickup with Fixed Short Delay Time (I2t Response) or Adjustable Short Time (Flat Response) I – Adjustable Instantaneous Pickup by Setting Short Time Delay Time to Instantaneous G – Adjustable Ground Fault Pickup with Adjustable Ground Fault Delay (Flat Response) This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Connection Bolt On Frame Type M Amperage 800 Max Poles 3 Voltage Max 600 Interrupting Capacity Rating 100 Kiloampere @ 240VAC, 65 Kiloampere @ 480VAC, 35 Kiloampere @ 600VAC Trip Setting Adjustable 5-10 Times Continuous Ampere Rating Standard Lug Type Without Terminals

Product Description Specs are as follows: HMDLB Frame Style, Molded Case Circuit Breaker, LSG Function Non-Interchangeable Trip Unit, Suitable for Reverse Feed, 800 Ampere Max at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 100 Kiloampere @ 240VAC, 65 Kiloampere @ 480VAC, 35 Kiloampere @ 600VAC, Rating Plug Not Included, Without Terminals. ATTENTION: This unit requires a rating plug in order to function. Please contact us to check stock and pricing of rating plugs if you need one installed before ordering. L – Adjustable Long Delay Pickup (By Adjustable Rating Plug) S – Adjustable Short Delay Pickup with Fixed Short Delay Time (I2t Response) or Adjustable Short Time (Flat Response) G – Adjustable Ground Fault Pickup with Adjustable Ground Fault Delay (Flat Response) This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Connection Bolt On Frame Type M Amperage 800 Max Poles 3 Voltage Max 600 Interrupting Capacity Rating 100 Kiloampere @ 240VAC, 65 Kiloampere @ 480VAC, 35 Kiloampere @ 600VAC Trip Setting Adjustable 5-10 Times Continuous Ampere Rating Standard Lug Type Without Terminals

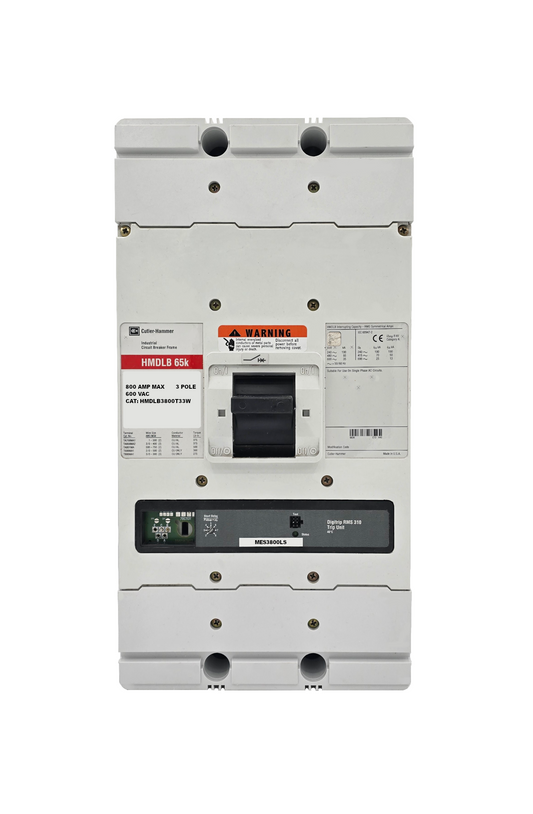

Product Description Specs are as follows: HMDLB Frame Style, Molded Case Circuit Breaker, LS Function Non-Interchangeable Trip Unit, Suitable for Reverse Feed, 800 Ampere Max at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 100 Kiloampere @ 240VAC, 65 Kiloampere @ 480VAC, 35 Kiloampere @ 600VAC, Rating Plug Not Included, Without Terminals. ATTENTION: This unit requires a rating plug in order to function. Please contact us to check stock and pricing of rating plugs if you need one installed before ordering. L – Adjustable Long Delay Pickup (By Adjustable Rating Plug) S – Adjustable Short Delay Pickup with Fixed Short Delay Time (I2t Response) or Adjustable Short Time (Flat Response) This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Connection Bolt On Frame Type M Amperage 800 Max Poles 3 Voltage Max 600 Interrupting Capacity Rating 100 Kiloampere @ 240VAC, 65 Kiloampere @ 480VAC, 35 Kiloampere @ 600VAC Trip Setting Adjustable 5-10 Times Continuous Ampere Rating Standard Lug Type Without Terminals

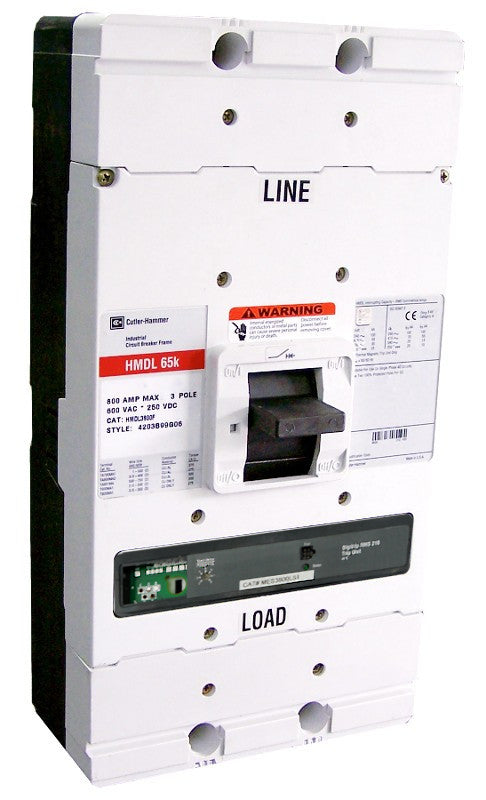

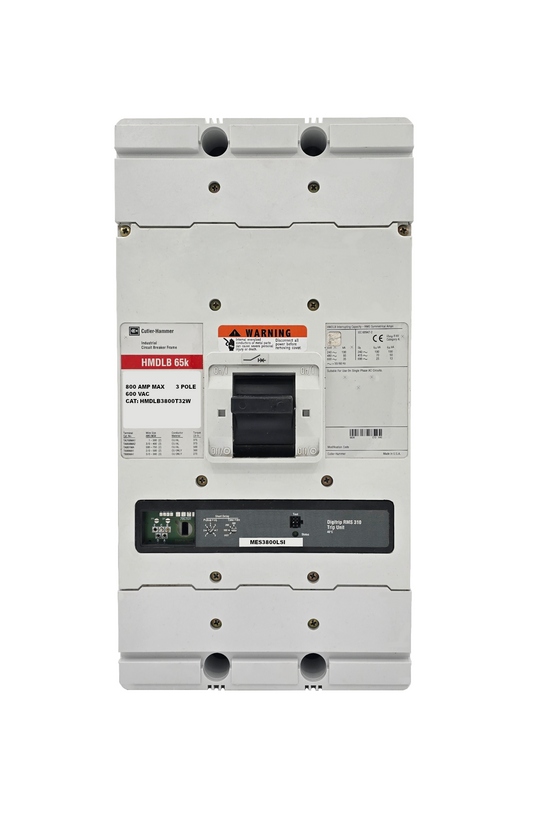

Product Description Specs are as follows: HMDLB Frame Style, Molded Case Circuit Breaker, LSI Function Non-Interchangeable Trip Unit, Suitable for Reverse Feed, 800 Ampere Max at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 100 Kiloampere @ 240VAC, 65 Kiloampere @ 480VAC, 35 Kiloampere @ 600VAC, Rating Plug Not Included. Without Terminals. ATTENTION: This unit requires a rating plug in order to function. Please contact us to check stock and pricing of rating plugs if you need one installed before ordering. L – Adjustable Long Delay Pickup (By Adjustable Rating Plug) S – Adjustable Short Delay Pickup with Fixed Short Delay Time (I2t Response) or Adjustable Short Time (Flat Response) I – Adjustable Instantaneous Pickup by Setting Short Time Delay Time to Instantaneous This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Connection Bolt On Frame Type M Amperage 800 Max Poles 3 Voltage Max 600 Interrupting Capacity Rating 100 Kiloampere @ 240VAC, 65 Kiloampere @ 480VAC, 35 Kiloampere @ 600VAC Trip Setting Adjustable 5-10 Times Continuous Ampere Rating Standard Lug Type Without Terminals

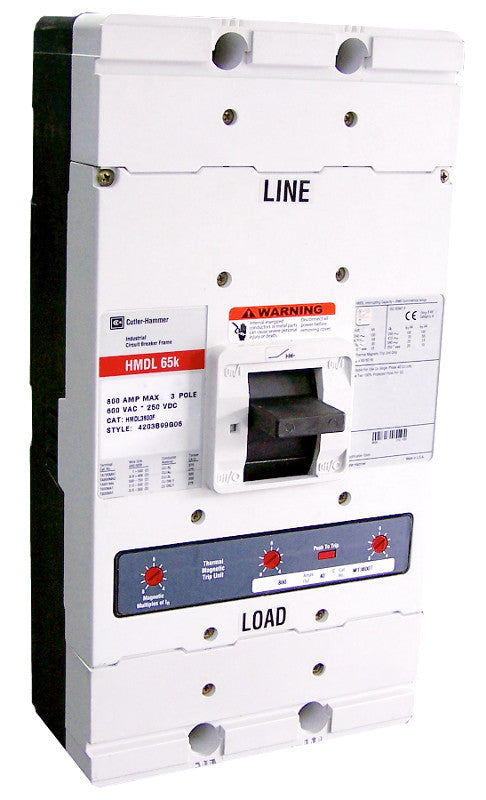

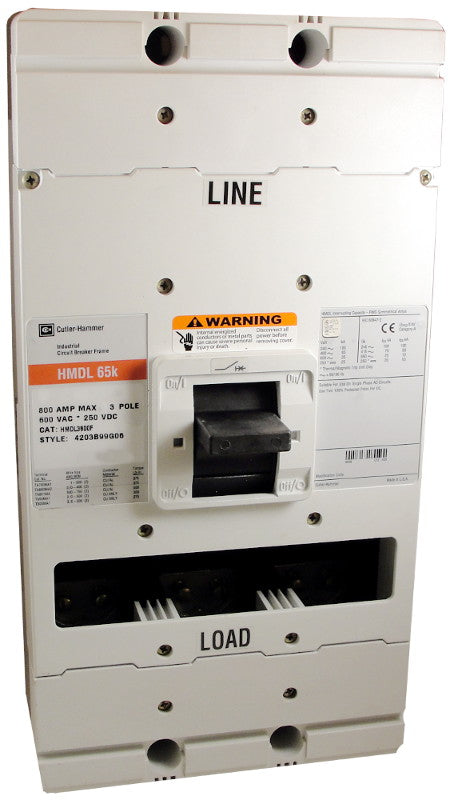

Product Description Specs are as follows: HMDL Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Interchangeable Trip Unit, 800 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, High Interrupting Ratings: 100 Kiloampere @ 240VAC, 65 Kiloampere @ 480VAC, 35 Kiloampere @ 600VAC, 25 Kiloampere @ 250VDC. This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Connection Bolt On Frame Type M Amperage 800 Poles 3 Voltage Max 600 Interrupting Capacity Rating 100 Kiloampere @ 240VAC, 65 Kiloampere @ 480VAC, 35 Kiloampere @ 600VAC, 25 Kiloampere @ 250VDC Trip Setting 4-8 Times the Continuous Ampere Rating Standard Lug Type

Product Description Specs are as follows: MDL Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Interchangeable Trip Unit, 800 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC. This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Connection Bolt On Frame Type M Amperage 800 Poles 3 Voltage Max 600 Interrupting Capacity Rating 65 Kiloampere @ 240VAC, 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC Trip Setting 4-8 Times the Continuous Ampere Rating Standard Lug Type

Product Description Specs are as follows: HMDL Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Interchangeable Trip Unit, 800 Ampere at 40 Degree Celsius, 3 Pole, 600VDC @ 50/60HZ, High Interrupting Ratings: 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 35 Kiloampere @ 600VDC. This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Configuration Connection Bolt On Frame Type M Amperage 800 Poles 3 Voltage Max 600 VDC Interrupting Capacity Rating 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 35 Kiloampere @ 600VDC Trip Setting 5-10 Times the Continuous Ampere Rating Standard Lug Type Without Terminals Standard

Product Description Specs are as follows: HMDL Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Interchangeable Trip Unit, 700 Ampere at 40 Degree Celsius, 3 Pole, 600VDC @ 50/60HZ, High Interrupting Ratings: 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 35 Kiloampere @ 600VDC. This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Configuration Connection Bolt On Frame Type M Amperage 700 Poles 3 Voltage Max 600 VDC Interrupting Capacity Rating 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 35 Kiloampere @ 600VDC Trip Setting 5-10 Times the Continuous Ampere Rating Standard Lug Type Without Terminals Standard

Product Description Specs are as follows: HMDL Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Interchangeable Trip Unit, 600 Ampere at 40 Degree Celsius, 3 Pole, 600VDC @ 50/60HZ, High Interrupting Ratings: 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 35 Kiloampere @ 600VDC. This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Configuration Connection Bolt On Frame Type M Amperage 600 Poles 3 Voltage Max 600 VDC Interrupting Capacity Rating 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 35 Kiloampere @ 600VDC Trip Setting 5-10 Times the Continuous Ampere Rating Standard Lug Type Without Terminals Standard

Product Description Specs are as follows: HMDL Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Interchangeable Trip Unit, 500 Ampere at 40 Degree Celsius, 3 Pole, 600VDC @ 50/60HZ, High Interrupting Ratings: 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 35 Kiloampere @ 600VDC. This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Configuration Connection Bolt On Frame Type M Amperage 500 Poles 3 Voltage Max 600 VDC Interrupting Capacity Rating 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 35 Kiloampere @ 600VDC Trip Setting 5-10 Times the Continuous Ampere Rating Standard Lug Type Without Terminals Standard

Product Description Specs are as follows: HMDL Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Interchangeable Trip Unit, 450 Ampere at 40 Degree Celsius, 3 Pole, 600VDC @ 50/60HZ, High Interrupting Ratings: 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 35 Kiloampere @ 600VDC. This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Configuration Connection Bolt On Frame Type M Amperage 450 Poles 3 Voltage Max 600 VDC Interrupting Capacity Rating 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 35 Kiloampere @ 600VDC Trip Setting 5-10 Times the Continuous Ampere Rating Standard Lug Type Without Terminals Standard

Product Description Specs are as follows: HMDL Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Interchangeable Trip Unit, 400 Ampere at 40 Degree Celsius, 3 Pole, 600VDC @ 50/60HZ, High Interrupting Ratings: 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 35 Kiloampere @ 600VDC. This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Configuration Connection Bolt On Frame Type M Amperage 400 Poles 3 Voltage Max 600 VDC Interrupting Capacity Rating 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 35 Kiloampere @ 600VDC Trip Setting 5-10 Times the Continuous Ampere Rating Standard Lug Type Without Terminals Standard

Product Description Specs are as follows: HMDL Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Interchangeable Trip Unit, 350 Ampere at 40 Degree Celsius, 3 Pole, 600VDC @ 50/60HZ, High Interrupting Ratings: 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 35 Kiloampere @ 600VDC. This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Configuration Connection Bolt On Frame Type M Amperage 350 Poles 3 Voltage Max 600 VDC Interrupting Capacity Rating 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 35 Kiloampere @ 600VDC Trip Setting 5-10 Times the Continuous Ampere Rating Standard Lug Type Without Terminals Standard

Product Description Specs are as follows: HMDLDC Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Interchangeable Trip Unit, 800 Ampere at 40 Degree Celsius, 3 Pole, 600VDC @ 50/60HZ, High Interrupting Ratings: 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 35 Kiloampere @ 600VDC, With Terminals Standard. This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Configuration Connection Bolt On Frame Type M Amperage 800 Poles 3 Voltage Max 600 VDC Interrupting Capacity Rating 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 35 Kiloampere @ 600VDC Trip Setting 5-10 Times the Continuous Ampere Rating Standard Lug Type With Terminals Standard

Product Description Specs are as follows: HMDLDC Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Interchangeable Trip Unit, 700 Ampere at 40 Degree Celsius, 3 Pole, 600VDC @ 50/60HZ, High Interrupting Ratings: 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 35 Kiloampere @ 600VDC, With Terminals Standard. This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Configuration Connection Bolt On Frame Type M Amperage 700 Poles 3 Voltage Max 600 VDC Interrupting Capacity Rating 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 35 Kiloampere @ 600VDC Trip Setting 5-10 Times the Continuous Ampere Rating Standard Lug Type With Terminals Standard

Product Description Specs are as follows: HMDLDC Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Interchangeable Trip Unit, 600 Ampere at 40 Degree Celsius, 3 Pole, 600VDC @ 50/60HZ, High Interrupting Ratings: 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 35 Kiloampere @ 600VDC, With Terminals Standard. This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Configuration Connection Bolt On Frame Type M Amperage 600 Poles 3 Voltage Max 600 VDC Interrupting Capacity Rating 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 35 Kiloampere @ 600VDC Trip Setting 5-10 Times the Continuous Ampere Rating Standard Lug Type With Terminals Standard

Product Description Specs are as follows: HMDLDC Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Interchangeable Trip Unit, 500 Ampere at 40 Degree Celsius, 3 Pole, 600VDC @ 50/60HZ, High Interrupting Ratings: 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 35 Kiloampere @ 600VDC, With Terminals Standard. This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Configuration Connection Bolt On Frame Type M Amperage 500 Poles 3 Voltage Max 600 VDC Interrupting Capacity Rating 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 35 Kiloampere @ 600VDC Trip Setting 5-10 Times the Continuous Ampere Rating Standard Lug Type With Terminals Standard

Product Description Specs are as follows: HMDLDC Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Interchangeable Trip Unit, 450 Ampere at 40 Degree Celsius, 3 Pole, 600VDC @ 50/60HZ, High Interrupting Ratings: 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 35 Kiloampere @ 600VDC, With Terminals Standard. This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Configuration Connection Bolt On Frame Type M Amperage 450 Poles 3 Voltage Max 600 VDC Interrupting Capacity Rating 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 35 Kiloampere @ 600VDC Trip Setting 5-10 Times the Continuous Ampere Rating Standard Lug Type With Terminals Standard

Product Description Specs are as follows: HMDLDC Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Interchangeable Trip Unit, 400 Ampere at 40 Degree Celsius, 3 Pole, 600VDC @ 50/60HZ, High Interrupting Ratings: 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 35 Kiloampere @ 600VDC, With Terminals Standard. This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Configuration Connection Bolt On Frame Type M Amperage 400 Poles 3 Voltage Max 600 VDC Interrupting Capacity Rating 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 35 Kiloampere @ 600VDC Trip Setting 5-10 Times the Continuous Ampere Rating Standard Lug Type With Terminals Standard

Product Description Specs are as follows: HMDLDC Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Interchangeable Trip Unit, 350 Ampere at 40 Degree Celsius, 3 Pole, 600VDC @ 50/60HZ, High Interrupting Ratings: 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 35 Kiloampere @ 600VDC, With Terminals Standard. This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Configuration Connection Bolt On Frame Type M Amperage 350 Poles 3 Voltage Max 600 VDC Interrupting Capacity Rating 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 35 Kiloampere @ 600VDC Trip Setting 5-10 Times the Continuous Ampere Rating Standard Lug Type With Terminals Standard

Product Description Specs are as follows: MDL Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Interchangeable Trip Unit, 800 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC. This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Connection Bolt On Frame Type M Amperage 800 Poles 3 Voltage Max 600 Interrupting Capacity Rating 65 Kiloampere @ 240VAC, 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC Trip Setting 4-8 Times the Continuous Ampere Rating Standard Lug Type

Product Description Specs are as follows: MDLB Frame Style, Molded Case Circuit Breaker, LSIG Function Non-Interchangeable Trip Unit, Suitable for Reverse Feed, 800 Ampere Max at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, Rating Plug Not Included. ATTENTION: This unit requires a rating plug in order to function. Please contact us to check stock and pricing of rating plugs if you need one installed before ordering. L – Adjustable Long Delay Pickup (By Adjustable Rating Plug) S – Adjustable Short Delay Pickup with Fixed Short Delay Time (I2t Response) or Adjustable Short Time (Flat Response) I – Adjustable Instantaneous Pickup by Setting Short Time Delay Time to Instantaneous G – Adjustable Ground Fault Pickup with Adjustable Ground Fault Delay (Flat Response) This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Connection Bolt On Frame Type M Amperage 800 Max Poles 3 Voltage Max 600 Interrupting Capacity Rating 65 Kiloampere @ 240VAC, 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC Trip Setting Adjustable 5-10 Times Continuous Ampere Rating Standard Lug Type

Product Description Specs are as follows: MDLB Frame Style, Molded Case Circuit Breaker, LSG Function Non-Interchangeable Trip Unit, Suitable for Reverse Feed, 800 Ampere Max at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, Rating Plug Not Included. ATTENTION: This unit requires a rating plug in order to function. Please contact us to check stock and pricing of rating plugs if you need one installed before ordering. L – Adjustable Long Delay Pickup (By Adjustable Rating Plug) S – Adjustable Short Delay Pickup with Fixed Short Delay Time (I2t Response) or Adjustable Short Time (Flat Response) G – Adjustable Ground Fault Pickup with Adjustable Ground Fault Delay (Flat Response) This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Connection Bolt On Frame Type M Amperage 800 Max Poles 3 Voltage Max 600 Interrupting Capacity Rating 65 Kiloampere @ 240VAC, 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC Trip Setting Adjustable 5-10 Times Continuous Ampere Rating Standard Lug Type

Product Description Specs are as follows: MDLB Frame Style, Molded Case Circuit Breaker, LSI Function Non-Interchangeable Trip Unit, Suitable for Reverse Feed, 800 Ampere Max at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, Rating Plug Not Included. ATTENTION: This unit requires a rating plug in order to function. Please contact us to check stock and pricing of rating plugs if you need one installed before ordering. L – Adjustable Long Delay Pickup (By Adjustable Rating Plug) S – Adjustable Short Delay Pickup with Fixed Short Delay Time (I2t Response) or Adjustable Short Time (Flat Response) I – Adjustable Instantaneous Pickup by Setting Short Time Delay Time to Instantaneous This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Connection Bolt On Frame Type M Amperage 800 Max Poles 3 Voltage Max 600 Interrupting Capacity Rating 65 Kiloampere @ 240VAC, 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC Trip Setting Adjustable 5-10 Times Continuous Ampere Rating Standard Lug Type
