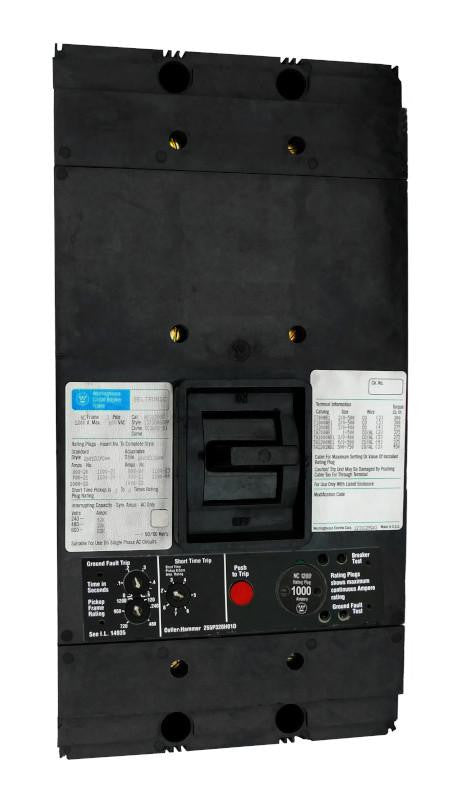

NCG31000 (NCG31200F w/1000 Amp Rating Plug)

New Surplus

Click for Info
$29,995.00

Certified Reconditioned

Qty in Stock: 1

$4,495.00
Delivery
Free with $500 Order
Get it by

Product Description

Specs are as follows:

NCG Frame Style, Molded Case Circuit Breaker, LSG Function Non-Interchangeable Trip Unit, 3 Pole, 600VAC @ 50/60HZ, High Interrupting Style, Interrupting Ratings: 42 Kiloampere @ 240VAC, 30 Kiloampere @ 480VAC, 22 Kiloampere @ 600VAC, with 1000 Amp Rating Plug, Without Terminals Standard

L – Adjustable Long Delay Pickup (By Adjustable Rating Plug)

S – Adjustable Short Delay Pickup with Fixed Short Delay Time (I2t Response) or Adjustable Short Time (Flat Response)

G – Adjustable Ground Fault Pickup with Adjustable Ground Fault Delay (Flat Response)

Specifications

Manufacturer Westinghouse / Cutler-Hammer
Warranty One Year
Configuration 12NC1000
Frame Type NC
Amperage 1000
Poles 3
Voltage Max 600
Interrupting Capacity Rating 42 Kiloampere @ 240VAC, 30 Kiloampere @ 480VAC, 22 Kiloampere @ 600VAC
Trip Setting 2000-8000
Standard Lug Type Without Terminals Standard
