CHND312T33W
Product Description
CHND Frame Style, Molded Case Circuit Breaker, 100% Rated, High Interrupting Capacity, Electronic Non-Interchangeable Trip Unit (Digitrip RMS 310), LS Trip Unit Functions, 1200 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 200 Kiloampere @ 240VAC, 100 Kiloampere @ 480VAC, 65 Kiloampere @ 600VAC.
ATTENTION: This unit requires a rating plug in order to function. Please contact us to check stock and pricing of rating plugs if you need one installed before ordering.
L - Adjustable Long Delay Pickup (By Adjustable Rating Plug)
S - Adjustable Short Delay Pickup with Fixed Short Delay Time (l2t Response) or Adjustable Short Delay Time (Flat Response)

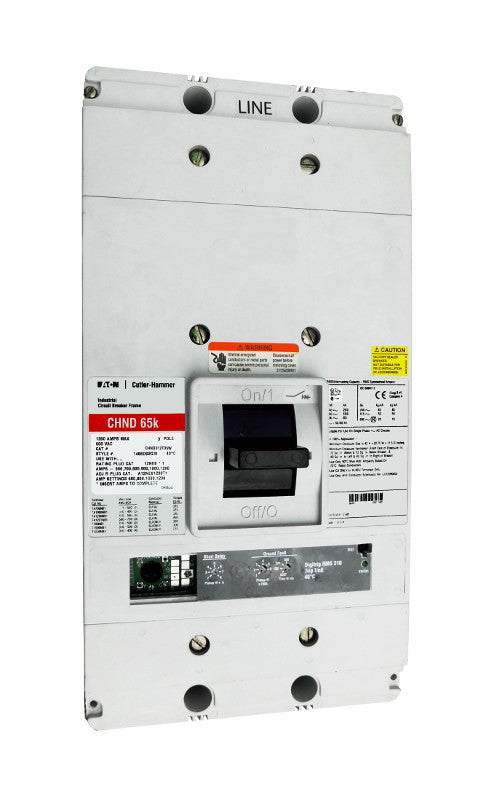

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Connection | Bolt On |
| Frame Type | N |
| Amperage | 1200 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 200 Kiloampere @ 240VAC, 100 Kiloampere @ 480VAC, 65 Kiloampere @ 600VAC |
| Standard Lug Type |
