A200 Series

Product Description Specs are as follows: Magnetic Motor Starter, Model K, Nema Size 4, 135 Amps, 3 Poles, 120VAC Coil, Full Voltage 600VAC, Type B Overload Relay Standard, Open Style No Enclosure, Across the Line Starting and Stopping, Single Speed, Non-Reversing, Max HP Ratings: 40 @ 208V/3 Phase, 50 @ 240V/3 Phase, 100 @ 480V/3 Phase, 100 @ 600V/3 Phase This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Amperage 135 Coil Voltage 120VAC Phase 3 Voltage Max 600 Nema Size 4 Coil Type Magnetic Reversing or Non-Reversing Non-Reversing Maximum Ratings 40 @ 208V/3 Phase, 50 @ 240V/3 Phase, 100 @ 480V/3 Phase, 100 @ 600V/3 Phase Application Full Voltage Style Model K

Product Description Specs are as follows: Magnetic Contactor, Nema Size 2, 45 Amps, 5 Poles, 120VAC Coil, Full Voltage 600VAC, Open Style No Enclosure, Across the Line Starting and Stopping, Single Speed, Non-Reversing, Max HP Ratings: 7 1/2 @ 115V/1 Phase, 10 @ 208V/3 Phase, 15 @ 240V/3 Phase, 25 @ 480V/3 Phase, 25 @ 600V/3 Phase. This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Amperage 45 Coil Voltage 120V AC Standard (505C806G01) Phase 3 Voltage Max 600 Poles 5 Nema Size 2 Coil Type Magnetic Enclosure Open Reversing or Non-Reversing Non-Reversing Maximum Ratings 7 1/2 @ 115V/1 Phase, 10 @ 208V/3 Phase, 15 @ 240V/3 Phase, 25 @ 480V/3 Phase, 25 @ 600V/3 Phase Application Full Voltage

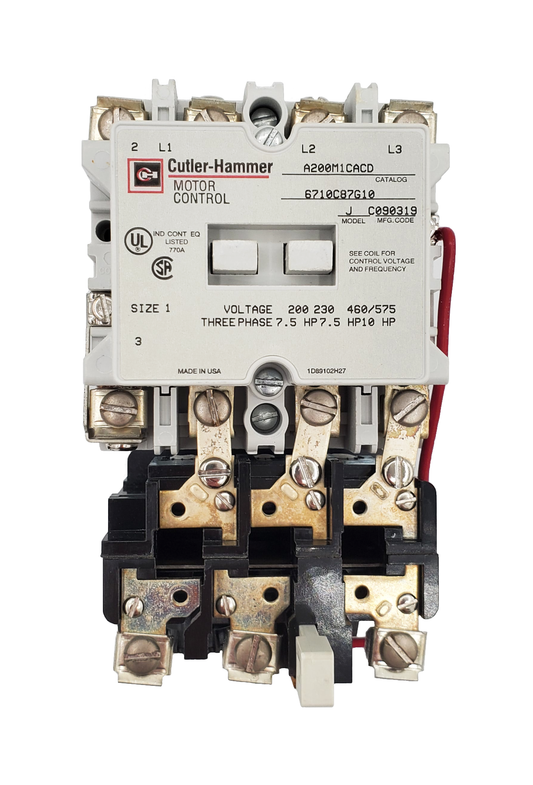

Product Description Specs are as follows: Magnetic Motor Starter, Nema Size 1, 27 Amps, 3 Poles, 120VAC Coil, Full Voltage 600VAC, Ambient Compensated Overload Relay with Auto-Reset, Open Style No Enclosure, Single Speed, Non-Reversing, Max HP Ratings: 2 @ 115V/1 Phase, 7 1/2 @ 208V/3 Phase, 7 1/2 @ 240V/3 Phase, 10 @ 480V/3 Phase, 10 @ 600V/3 Phase. This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Amperage 27 Coil Voltage 120V AC Standard (505C806G01) Phase 3 Voltage Max 600 Nema Size 1 Coil Type Magnetic Reversing or Non-Reversing Non-Reversing Maximum Ratings 2 @ 115V/1 Phase, 7 1/2 @ 208V/3 Phase, 7 1/2 @ 240V/3 Phase, 10 @ 480V/3 Phase, 10 @ 600V/3 Phase Application Full Voltage

Product Description Specs are as follows: Magnetic Contactor, Nema Size 6, 540 Amps, 3 Poles, 125VAC Coil, Full Voltage 600VAC, Open Style No Enclosure, Clapper Design, Across the Line Starting and Stopping, Single Speed, Non-Reversing, Max HP Ratings: 150 @ 208V/3 Phase, 200 @ 240V/3 Phase, 400 @ 480V/3 Phase, 400 @ 600V/3 Phase. This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Amperage 540 Coil Voltage 125V AC Phase 3 Voltage Max 600 Nema Size 6 Coil Type Magnetic Enclosure Open Reversing or Non-Reversing Non-Reversing Maximum Ratings 150 @ 208V/3 Phase, 200 @ 240V/3 Phase, 400 @ 480V/3 Phase, 400 @ 600V/3 Phase Application Full Voltage

Product Description Specs are as follows: Magnetic Contactor, Nema Size 1, 27 Amps, 3 Poles, 120VAC Coil, Full Voltage 600VAC, Open Style No Enclosure, Across the Line Starting and Stopping, Single Speed, Reversing, Max HP Ratings: 2 @ 115V/1 Phase, 7 1/2 @ 208V/3 Phase, 7 1/2 @ 240V/3 Phase, 10 @ 480V/3 Phase, 10 @ 600V/3 Phase. This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Amperage 27 Coil Voltage 120V AC Standard (505C806G01) Phase 3 Voltage Max 600 Nema Size 1 Coil Type Magnetic Enclosure Open Reversing or Non-Reversing Forward and Reversing Maximum Ratings 2 @ 115V/1 Phase, 7 1/2 @ 208V/3 Phase, 7 1/2 @ 240V/3 Phase, 10 @ 480V/3 Phase, 10 @ 600V/3 Phase Application Full Voltage

Product Description Specs are as follows: Magnetic Contactor, Model K, Nema Size 4, 135 Amps, 3 Poles, 600VAC Coil, Full Voltage 600VAC, Open Style No Enclosure, Across the Line Starting and Stopping, Single Speed, Non-Reversing, Max HP Ratings: 40 @ 208V/3 Phase, 50 @ 240V/3 Phase, 100 @ 480V/3 Phase, 100 @ 600V/3 Phase This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Amperage 135 Coil Voltage 600VAC Phase 3 Voltage Max 600 Nema Size 4 Coil Type Magnetic Enclosure Open Reversing or Non-Reversing Non-Reversing Maximum Ratings 40 @ 208V/3 Phase, 50 @ 240V/3 Phase, 100 @ 480V/3 Phase, 100 @ 600V/3 Phase Application Full Voltage Style Model K

Product Description Specs are as follows: Magnetic Contactor, Model K, Nema Size 4, 135 Amps, 3 Poles, 480VAC Coil, Full Voltage 600VAC, Open Style No Enclosure, Across the Line Starting and Stopping, Single Speed, Non-Reversing, Max HP Ratings: 40 @ 208V/3 Phase, 50 @ 240V/3 Phase, 100 @ 480V/3 Phase, 100 @ 600V/3 Phase This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Amperage 135 Coil Voltage 480VAC Phase 3 Voltage Max 600 Nema Size 4 Coil Type Magnetic Enclosure Open Reversing or Non-Reversing Non-Reversing Maximum Ratings 40 @ 208V/3 Phase, 50 @ 240V/3 Phase, 100 @ 480V/3 Phase, 100 @ 600V/3 Phase Application Full Voltage Style Model K

Product Description Specs are as follows: Magnetic Contactor, Model K, Nema Size 4, 135 Amps, 3 Poles, 240VAC Coil, Full Voltage 600VAC, Open Style No Enclosure, Across the Line Starting and Stopping, Single Speed, Non-Reversing, Max HP Ratings: 40 @ 208V/3 Phase, 50 @ 240V/3 Phase, 100 @ 480V/3 Phase, 100 @ 600V/3 Phase This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Amperage 135 Coil Voltage 240VAC Phase 3 Voltage Max 600 Nema Size 4 Coil Type Magnetic Enclosure Open Reversing or Non-Reversing Non-Reversing Maximum Ratings 40 @ 208V/3 Phase, 50 @ 240V/3 Phase, 100 @ 480V/3 Phase, 100 @ 600V/3 Phase Application Full Voltage Style Model K

Product Description Specs are as follows: Magnetic Contactor, Model K, Nema Size 4, 135 Amps, 3 Poles, 208VAC Coil, Full Voltage 600VAC, Open Style No Enclosure, Across the Line Starting and Stopping, Single Speed, Non-Reversing, Max HP Ratings: 40 @ 208V/3 Phase, 50 @ 240V/3 Phase, 100 @ 480V/3 Phase, 100 @ 600V/3 Phase This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Amperage 135 Coil Voltage 240VAC Phase 3 Voltage Max 600 Nema Size 4 Coil Type Magnetic Enclosure Open Reversing or Non-Reversing Non-Reversing Maximum Ratings 40 @ 208V/3 Phase, 50 @ 240V/3 Phase, 100 @ 480V/3 Phase, 100 @ 600V/3 Phase Application Full Voltage Style Model K

Product Description Specs are as follows: Magnetic Contactor, Model K, Nema Size 4, 135 Amps, 3 Poles, 120VAC Coil, Full Voltage 600VAC, Open Style No Enclosure, Across the Line Starting and Stopping, Single Speed, Non-Reversing, Max HP Ratings: 40 @ 208V/3 Phase, 50 @ 240V/3 Phase, 100 @ 480V/3 Phase, 100 @ 600V/3 Phase This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Amperage 135 Coil Voltage 120VAC Phase 3 Voltage Max 600 Nema Size 4 Coil Type Magnetic Enclosure Open Reversing or Non-Reversing Non-Reversing Maximum Ratings 40 @ 208V/3 Phase, 50 @ 240V/3 Phase, 100 @ 480V/3 Phase, 100 @ 600V/3 Phase Application Full Voltage Style Model K

Product Description Specs are as follows: Magnetic Motor Starter, Model K, Nema Size 4, 135 Amps, 3 Poles, 600VAC Coil, Full Voltage 600VAC, Type B Overload Relay Standard, Open Style No Enclosure, Across the Line Starting and Stopping, Single Speed, Non-Reversing, Max HP Ratings: 40 @ 208V/3 Phase, 50 @ 240V/3 Phase, 100 @ 480V/3 Phase, 100 @ 600V/3 Phase This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Amperage 135 Coil Voltage 600VAC Phase 3 Voltage Max 600 Nema Size 4 Coil Type Magnetic Reversing or Non-Reversing Non-Reversing Maximum Ratings 40 @ 208V/3 Phase, 50 @ 240V/3 Phase, 100 @ 480V/3 Phase, 100 @ 600V/3 Phase Application Full Voltage Style Model K

Product Description Specs are as follows: Magnetic Motor Starter, Model K, Nema Size 4, 135 Amps, 3 Poles, 480VAC Coil, Full Voltage 600VAC, Type B Overload Relay Standard, Open Style No Enclosure, Across the Line Starting and Stopping, Single Speed, Non-Reversing, Max HP Ratings: 40 @ 208V/3 Phase, 50 @ 240V/3 Phase, 100 @ 480V/3 Phase, 100 @ 600V/3 Phase This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Amperage 135 Coil Voltage 480VAC Phase 3 Voltage Max 600 Nema Size 4 Coil Type Magnetic Reversing or Non-Reversing Non-Reversing Maximum Ratings 40 @ 208V/3 Phase, 50 @ 240V/3 Phase, 100 @ 480V/3 Phase, 100 @ 600V/3 Phase Application Full Voltage Style Model K

Product Description Specs are as follows: Magnetic Motor Starter, Model K, Nema Size 4, 135 Amps, 3 Poles, 240VAC Coil, Full Voltage 600VAC, Type B Overload Relay Standard, Open Style No Enclosure, Across the Line Starting and Stopping, Single Speed, Non-Reversing, Max HP Ratings: 40 @ 208V/3 Phase, 50 @ 240V/3 Phase, 100 @ 480V/3 Phase, 100 @ 600V/3 Phase This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Amperage 135 Coil Voltage 240VAC Phase 3 Voltage Max 600 Nema Size 4 Coil Type Magnetic Reversing or Non-Reversing Non-Reversing Maximum Ratings 40 @ 208V/3 Phase, 50 @ 240V/3 Phase, 100 @ 480V/3 Phase, 100 @ 600V/3 Phase Application Full Voltage Style Model K

Product Description Specs are as follows: Magnetic Motor Starter, Model K, Nema Size 4, 135 Amps, 3 Poles, 208VAC Coil, Full Voltage 600VAC, Type B Overload Relay Standard, Open Style No Enclosure, Across the Line Starting and Stopping, Single Speed, Non-Reversing, Max HP Ratings: 40 @ 208V/3 Phase, 50 @ 240V/3 Phase, 100 @ 480V/3 Phase, 100 @ 600V/3 Phase. This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Amperage 135 Coil Voltage 208VAC Phase 3 Voltage Max 600 Nema Size 4 Coil Type Magnetic Reversing or Non-Reversing Non-Reversing Maximum Ratings 40 @ 208V/3 Phase, 50 @ 240V/3 Phase, 100 @ 480V/3 Phase, 100 @ 600V/3 Phase Application Full Voltage Style Model K

Product Description Specs are as follows: Magnetic Motor Starter, Model K, Nema Size 4, 135 Amps, 3 Poles, 120VAC Coil, Full Voltage 600VAC, Type B Overload Relay Standard, Open Style No Enclosure, Across the Line Starting and Stopping, Single Speed, Non-Reversing, Max HP Ratings: 40 @ 208V/3 Phase, 50 @ 240V/3 Phase, 100 @ 480V/3 Phase, 100 @ 600V/3 Phase This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Amperage 135 Coil Voltage 120VAC Phase 3 Voltage Max 600 Nema Size 4 Coil Type Magnetic Reversing or Non-Reversing Non-Reversing Maximum Ratings 40 @ 208V/3 Phase, 50 @ 240V/3 Phase, 100 @ 480V/3 Phase, 100 @ 600V/3 Phase Application Full Voltage Style Model K

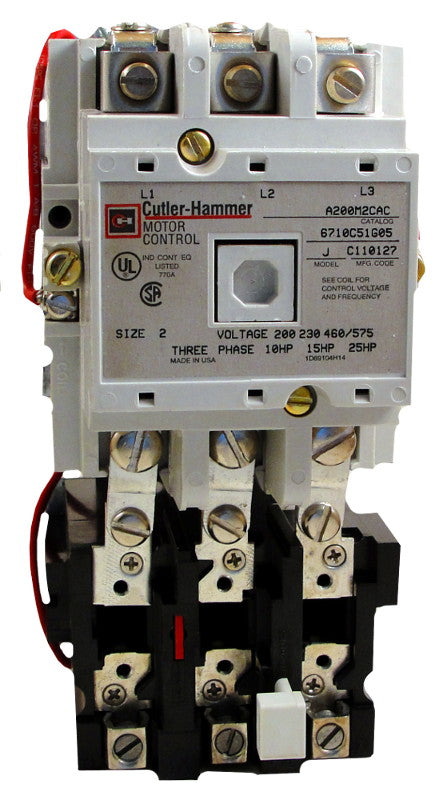

Product Description Specs are as follows: Magnetic Motor Starter, Nema Size 2, 45 Amps, 3 Poles, 120VAC Coil, Full Voltage 600VAC, Type B Overload Relay Standard, Open Style No Enclosure, Across the Line Starting and Stopping, Single Speed, Non-Reversing, Max HP Ratings: 7 1/2 @ 115V/1 Phase, 10 @ 208V/3 Phase, 15 @ 240V/3 Phase, 25 @ 480V/3 Phase, 25 @ 600V/3 Phase. This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Amperage 45 Coil Voltage 120V AC Standard (505C806G01) Phase 3 Voltage Max 600 Nema Size 2 Coil Type Magnetic Reversing or Non-Reversing Non-Reversing Maximum Ratings 7 1/2 @ 115V/1 Phase, 10 @ 208V/3 Phase, 15 @ 240V/3 Phase, 25 @ 480V/3 Phase, 25 @ 600V/3 Phase Application Full Voltage

Product Description Specs are as follows: Magnetic Contactor, Air Conditioning Control, Size 4DP, 211 Amps, 3 Poles, 120VAC Coil, Full Voltage 600VAC, Open Style No Enclosure, Across the Line Starting and Stopping, Single Speed, Non-Reversing This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Amperage 211 Coil Voltage 120VAC Phase 3 Voltage Max 600 Coil Type Magnetic Enclosure Open Reversing or Non-Reversing Non-Reversing Application Air Conditioning Control Poles 3

Product Description Specs are as follows: Magnetic Contactor, Nema Size 6, 540 Amps, 3 Poles, 600VAC Coil, Full Voltage 600VAC, Open Style No Enclosure, Clapper Design, Across the Line Starting and Stopping, Single Speed, Non-Reversing, Max HP Ratings: 150 @ 208V/3 Phase, 200 @ 240V/3 Phase, 400 @ 480V/3 Phase, 400 @ 600V/3 Phase. This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Amperage 540 Coil Voltage 600V AC Standard (2050A12G17) Phase 3 Voltage Max 600 Nema Size 6 Coil Type Magnetic Enclosure Open Reversing or Non-Reversing Non-Reversing Maximum Ratings 150 @ 208V/3 Phase, 200 @ 240V/3 Phase, 400 @ 480V/3 Phase, 400 @ 600V/3 Phase Application Full Voltage

Product Description Specs are as follows: Magnetic Contactor, Nema Size 5, 270 Amps, 3 Poles, 600VAC Coil, Full Voltage 600VAC, Open Style No Enclosure, Clapper Design, Across the Line Starting and Stopping, Single Speed, Non-Reversing, Max HP Ratings: 75 @ 208V/3 Phase, 100 @ 240V/3 Phase, 200 @ 480V/3 Phase, 200 @ 600V/3 Phase. This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Amperage 270 Coil Voltage 600V AC Standard (2050A14G17) Phase 3 Voltage Max 600 Nema Size 5 Coil Type Magnetic Enclosure Open Reversing or Non-Reversing Non-Reversing Maximum Ratings 75 @ 208V/3 Phase, 100 @ 240V/3 Phase, 200 @ 480V/3 Phase, 200 @ 600V/3 Phase Application Full Voltage

Product Description Specs are as follows: Magnetic Contactor, Model J, Nema Size 4, 135 Amps, 3 Poles, 600VAC Coil, Full Voltage 600VAC, Open Style No Enclosure, Across the Line Starting and Stopping, Single Speed, Non-Reversing, Max HP Ratings: 40 @ 208V/3 Phase, 50 @ 240V/3 Phase, 100 @ 480V/3 Phase, 100 @ 600V/3 Phase This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Amperage 135 Coil Voltage 600VAC Phase 3 Voltage Max 600 Nema Size 4 Coil Type Magnetic Enclosure Open Reversing or Non-Reversing Non-Reversing Maximum Ratings 40 @ 208V/3 Phase, 50 @ 240V/3 Phase, 100 @ 480V/3 Phase, 100 @ 600V/3 Phase Application Full Voltage Style Model J

Product Description Specs are as follows: Magnetic Contactor, Nema Size 3, 90 Amps, 3 Poles, 600VAC Coil, Full Voltage 600VAC, Open Style No Enclosure, Across the Line Starting and Stopping, Single Speed, Non-Reversing, Max HP Ratings: 25 @ 208V/3 Phase, 30 @ 240V/3 Phase, 50 @ 480V/3 Phase, 50 @ 600V/3 Phase. This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Amperage 90 Coil Voltage 600V AC Standard (505C633G05) Phase 3 Voltage Max 600 Nema Size 3 Coil Type Magnetic Enclosure Open Reversing or Non-Reversing Non-Reversing Maximum Ratings 25 @ 208V/3 Phase, 30 @ 240V/3 Phase, 50 @ 480V/3 Phase, 50 @ 600V/3 Phase Application Full Voltage

Product Description Specs are as follows: Magnetic Contactor, Nema Size 2, 45 Amps, 3 Poles, 600VAC Coil, Full Voltage 600VAC, Open Style No Enclosure, Across the Line Starting and Stopping, Single Speed, Non-Reversing, Max HP Ratings: 7 1/2 @ 115V/1 Phase, 10 @ 208V/3 Phase, 15 @ 240V/3 Phase, 25 @ 480V/3 Phase, 25 @ 600V/3 Phase. This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Amperage 45 Coil Voltage 600V AC Standard (505C806G05) Phase 3 Voltage Max 600 Nema Size 2 Coil Type Magnetic Enclosure Open Reversing or Non-Reversing Non-Reversing Maximum Ratings 7 1/2 @ 115V/1 Phase, 10 @ 208V/3 Phase, 15 @ 240V/3 Phase, 25 @ 480V/3 Phase, 25 @ 600V/3 Phase Application Full Voltage

Product Description Specs are as follows: Magnetic Contactor, Nema Size 1, 27 Amps, 3 Poles, 600VAC Coil, Full Voltage 600VAC, Open Style No Enclosure, Across the Line Starting and Stopping, Single Speed, Non-Reversing, Max HP Ratings: 2 @ 115V/1 Phase, 7 1/2 @ 208V/3 Phase, 7 1/2 @ 240V/3 Phase, 10 @ 480V/3 Phase, 10 @ 600V/3 Phase. This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Amperage 27 Coil Voltage 600V AC Standard (505C806G05) Phase 3 Voltage Max 600 Nema Size 1 Coil Type Magnetic Enclosure Open Reversing or Non-Reversing Non-Reversing Maximum Ratings 2 @ 115V/1 Phase, 7 1/2 @ 208V/3 Phase, 7 1/2 @ 240V/3 Phase, 10 @ 480V/3 Phase, 10 @ 600V/3 Phase Application Full Voltage

Product Description Specs are as follows: Magnetic Contactor, Nema Size 0, 18 Amps, 3 Poles, 600VAC Coil, Full Voltage 600VAC, Open Style No Enclosure, Across the Line Starting and Stopping, Single Speed, Non-Reversing, Max HP Ratings: 1 @ 115V/1 Phase, 3 @ 208V/3 Phase, 3 @ 240V/3 Phase, 5 @ 480V/3 Phase, 5 @ 600V/3 Phase. This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout. Specifications Manufacturer Eaton / Cutler Hammer Warranty One Year Amperage 18 Coil Voltage 600V AC Standard (505C806G05) Phase 3 Voltage Max 600 Nema Size 0 Coil Type Magnetic Enclosure Open Reversing or Non-Reversing Non-Reversing Maximum Ratings 1 @ 115V/1 Phase, 3 @ 208V/3 Phase, 3 @ 240V/3 Phase, 5 @ 480V/3 Phase, 5 @ 600V/3 Phase Application Full Voltage
