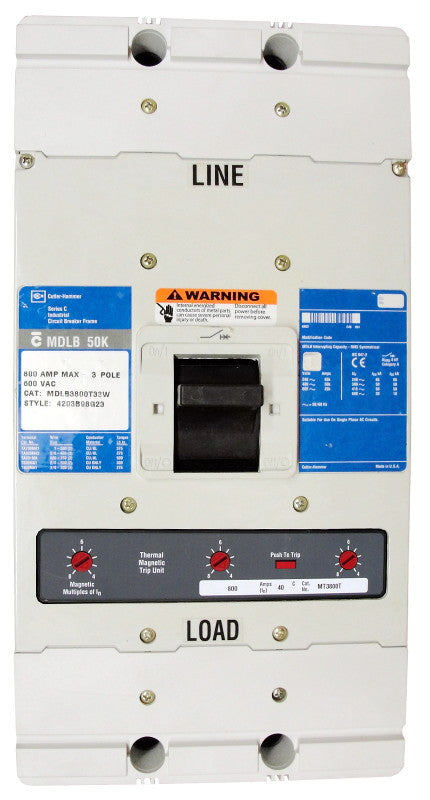

MDLB Frame Style Molded Case Circuit Breaker
Look under Parts & Accessories or follow the links below to order accessories used to create additional configurations for this unit.
1. Auxiliary Switches
2. Shunt Trips
3. Terminal/Lug Kits
4. Trip Units
5. Undervoltage Releases (UVRs)
Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specs are as follows:
MDLB Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Non-Interchangeable Trip Unit, 700 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC
|Manufacturer||Eaton / Cutler Hammer|
|Interrupting Capacity Rating||65 Kiloampere @ 240VAC, 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC|
|Trip Setting||5-10 Times the Continuous Ampere Rating|
|Standard Lug Type||Aluminum Line and Load End Terminals Standard|
