Follow the links below to order accessories used to create additional configurations for this unit.
1. Auxiliary Switches:
2. Shunt Trips:
3. Undervoltage Releases (UVRs):
4. Terminal/Lug Kits:
If a UVR light (LED) is not required, we'd suggest ordering the U18 option to reduce cost and lead time.
Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specs are as follows:

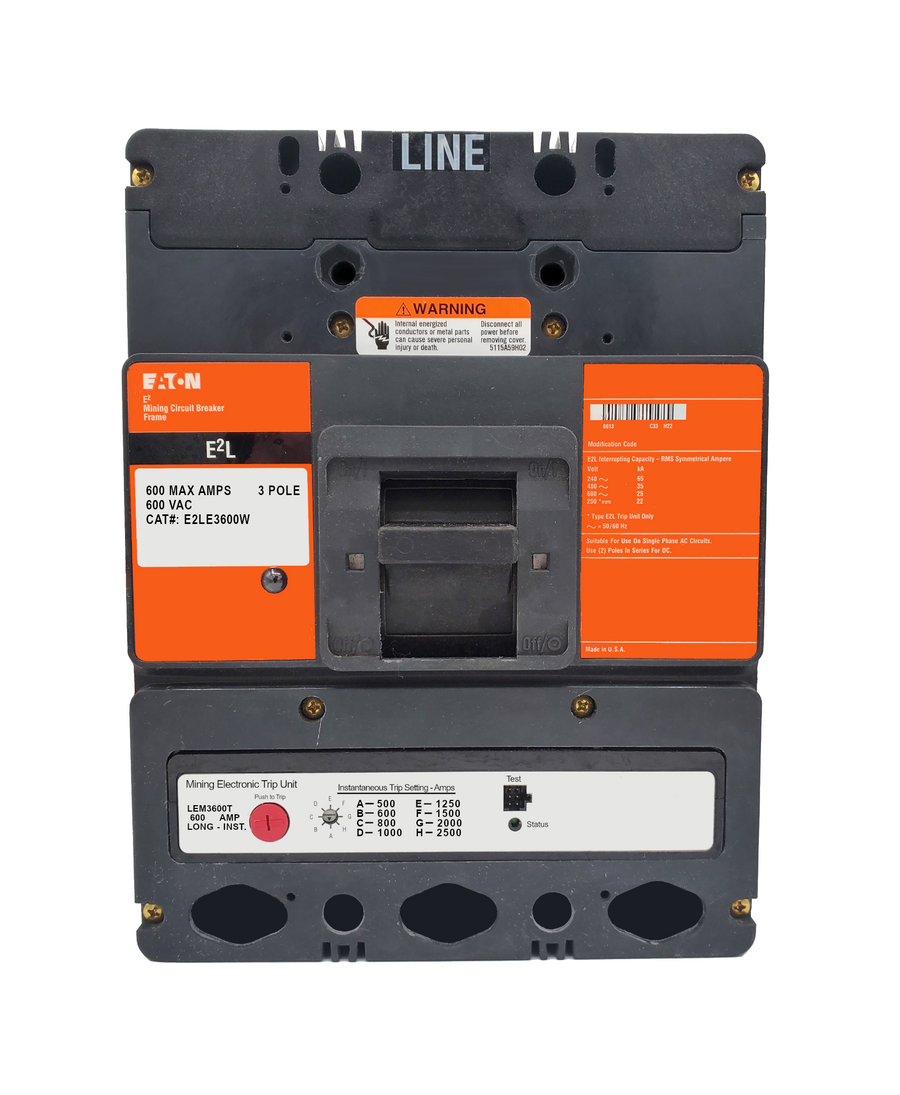

E2L Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Electronic Trip Unit, Long/Instantaneous, 600 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC, Without Terminals Standard, U18 (Without LED) and U66 (With LED) Options Includes: [110-127VAC UVR Installed, Right Pole Mounted, Exiting Rear]
|Manufacturer||Eaton / Cutler Hammer|
|Voltage Max||600 VAC|
|Interrupting Capacity Rating||65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC|
|Standard Lug Type||Without Terminals Standard|
