Specs are as follows:

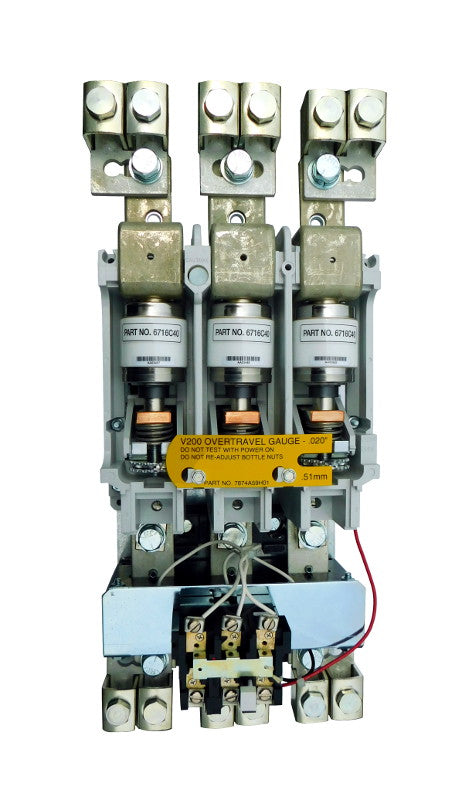

Vacuum Motor Starter, Special Purpose Rated, 540 Amps, 3 Poles, 220/240V AC Coil, Motor Voltage 1500V AC Max, Open Style No Enclosure, Non-Reversing, Max HP Ratings: 150 @ 200VAC, 200 @ 230VAC, 300 @ 380VAC, 400 @ 460VAC, 500 @ 575VAC, 1000 @ 1000VAC, 1250 @ 1500VAC, Line and Load End Terminals Standard
Look under Parts & Accessories to order accessories used to create additional configurations for this unit.
Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
|Manufacturer||Eaton / Cutler Hammer|
|Reversing or Non-Reversing||Non-Reversing|
|Maximum Ratings||150 HP @ 200VAC, 200 HP @ 230VAC, 300 HP @ 380VAC, 400 HP @ 460VAC, 500 HP @ 575VAC, 1000 HP @ 1000VAC, 1250 HP @ 1500VAC|
|Standard Lug Type||Line and Load|
