AN16KN0A

New Surplus

Qty in Stock: 2

$1,195.00

Certified Reconditioned

Qty in Stock: 1

$775.00

Product Description

Specs are as follows:

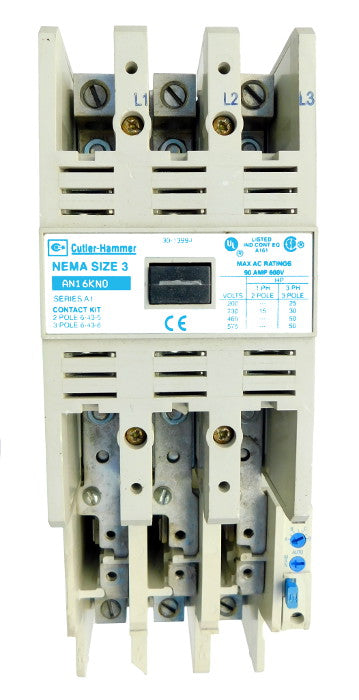

Magnetic Motor Starter, Nema Size 3, 90 Amps, 3 Poles, 120VAC Coil, Full Voltage 600VAC, Type A Overload Relay Standard, Open Style No Enclosure, Across the Line Starting and Stopping, Single Speed, Non-Reversing, Max HP Ratings (3 Phase): 25 @ 208VAC, 30 @ 240VAC, 50 @ 480VAC, 50 @ 600VAC.

Look under Parts & Accessories to order accessories used to create additional configurations for this unit.

Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.

Specifications


Manufacturer Eaton / Cutler Hammer
Warranty One Year
Amperage 90
Coil Voltage 120VAC
Phase 3
Voltage Max 600
Nema Size 3
Coil Type Magnetic
Reversing or Non-Reversing Non-Reversing
Maximum Ratings 25 HP @ 208VAC, 30 HP @ 240VAC, 50 HP @ 480VAC 50 HP @ 600VAC
Application Full Voltage
Poles 3
