Product Description
Specs are as follows:
CHMDL Frame Style, Molded Case Circuit Breaker Frame, High Interrupting Capacity, 100% Rated, Frame Only (No Trip Unit Included, Uses Electronic Trip Units Only), 3 Pole, 800VAC @ 50/60HZ, Interrupting Ratings: 100 Kiloampere @ 240VAC, 65 Kiloampere @ 480VAC, 35 Kiloampere @ 600VAC, 25 Kiloampere @ 250VDC

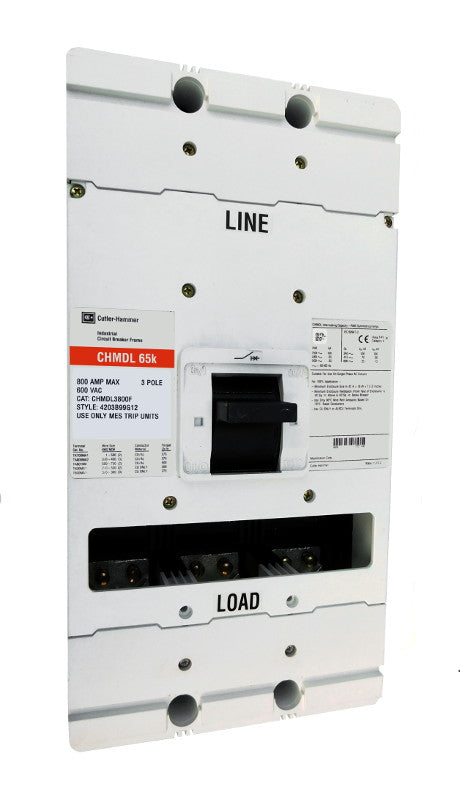

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Configuration | Frame Only (No Trip Unit Included) |
| Connection | Bolt On |
| Frame Type | M |
| Poles | 3 |
| Voltage Max | 800 |
| Interrupting Capacity Rating | 100 Kiloampere @ 240VAC, 65 Kiloampere @ 480VAC, 35 Kiloampere @ 600VAC, 25 Kiloampere @ 250VDC |
