Specs are as follows:

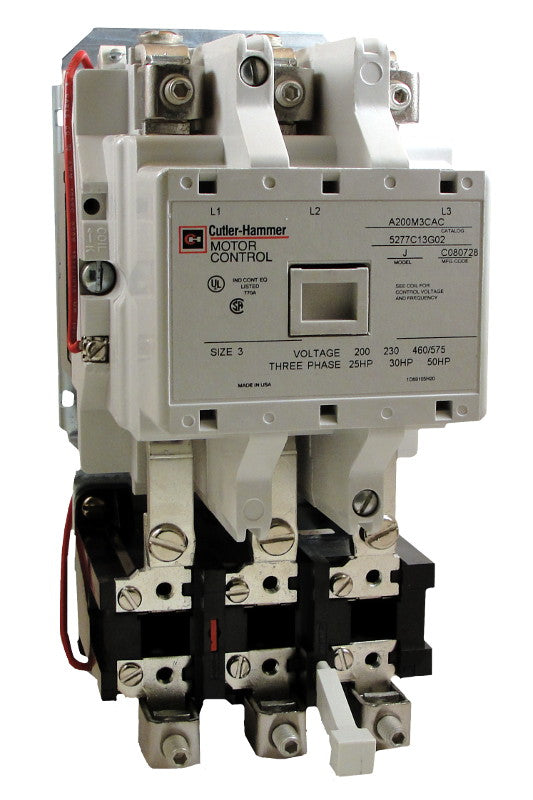

Magnetic Motor Starter, Nema Size 3, 90 Amps, 3 Poles, 208VAC Coil, Full Voltage 600VAC, Type B Overload Relay Standard, Open Style No Enclosure, Across the Line Starting and Stopping, Single Speed, Non-Reversing, Max HP Ratings: 25 @ 208V/3 Phase, 30 @ 240V/3 Phase, 50 @ 480V/3 Phase, 50 @ 600V/3 Phase.
This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
|Manufacturer||Eaton / Cutler Hammer|
|Coil Voltage||208V AC Standard (505C633G02)|
|Reversing or Non-Reversing||Non-Reversing|
|Maximum Ratings||25 @ 208V/3 Phase, 30 @ 240V/3 Phase, 50 @ 480V/3 Phase, 50 @ 600V/3 Phase|
