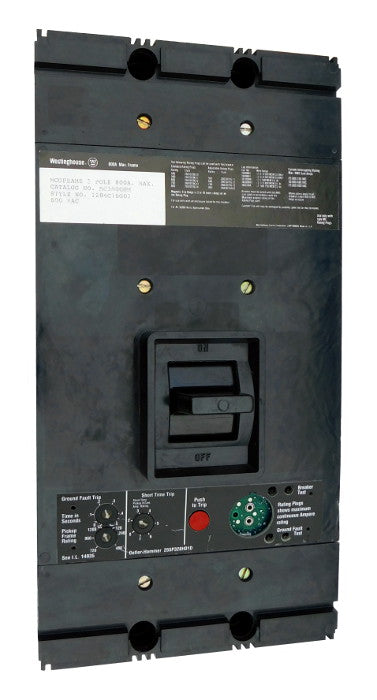

MCG3700 (MCG3800F w700 Amp Rating Plug)
Specs are as follows:
MCG Frame Style, Molded Case Circuit Breaker, LSG Function Non-Interchangeable Trip Unit, 3 Pole, 600VAC @ 50/60HZ, High Interrupting Style, Interrupting Ratings: 42 Kiloampere @ 240VAC, 30 Kiloampere @ 480VAC, 22 Kiloampere @ 600VAC, with 700 Amp Rating Plug, Line and Load End Terminals Standard
L – Adjustable Long Delay Pickup (By Adjustable Rating Plug)
S – Adjustable Short Delay Pickup with Fixed Short Delay Time (I2t Response) or Adjustable Short Time (Flat Response)
G – Adjustable Ground Fault Pickup with Adjustable Ground Fault Delay (Flat Response)
Look under Parts & Accessories to order accessories used to create additional configurations for this unit.
Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
|Manufacturer||Westinghouse / Cutler-Hammer|
|Interrupting Capacity Rating||42 Kiloampere @ 240VAC, 30 Kiloampere @ 480VAC, 22 Kiloampere @ 600VAC|
|Standard Lug Type||Without Terminals|
