Product Description

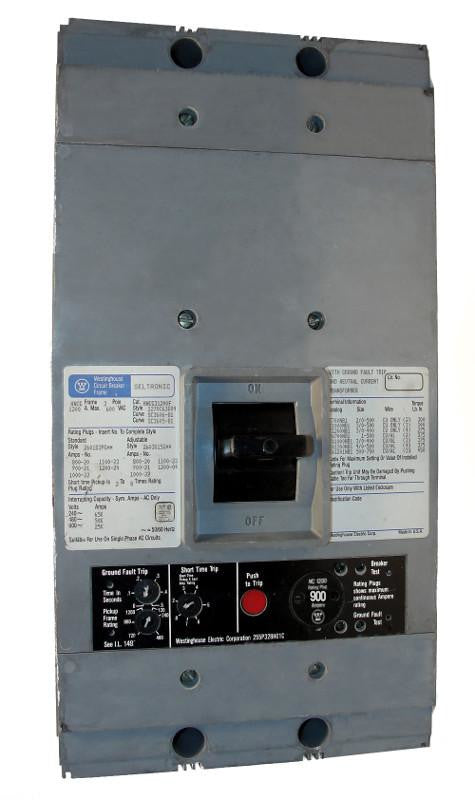

HNCG Frame Style, Molded Case Circuit Breaker, Mark 75, LSG Function Non-Interchangeable Trip Unit, High Interrupting Capacity, 3 Pole, 600VAC @ 50/60HZ, High Interrupting Style, Interrupting Ratings: 65 Kiloampere @ 240VAC, 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, with 900 Amp Rating Plug, Without Terminals Standard
L – Adjustable Long Delay Pickup (By Adjustable Rating Plug)
S – Adjustable Short Delay Pickup with Fixed Short Delay Time (I2t Response) or Adjustable Short Time (Flat Response)
G – Adjustable Ground Fault Pickup with Adjustable Ground Fault Delay (Flat Response)
This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Westinghouse / Cutler-Hammer |
|---|---|
| Warranty | One Year |
| Configuration | 12NC900 |
| Frame Type | NC |
| Amperage | 900 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 65 Kiloampere @ 240VAC, 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC |
| Trip Setting | 1800-7200 |
| Standard Lug Type | Without Terminals Standard |
