Product Description
Specs are as follows:

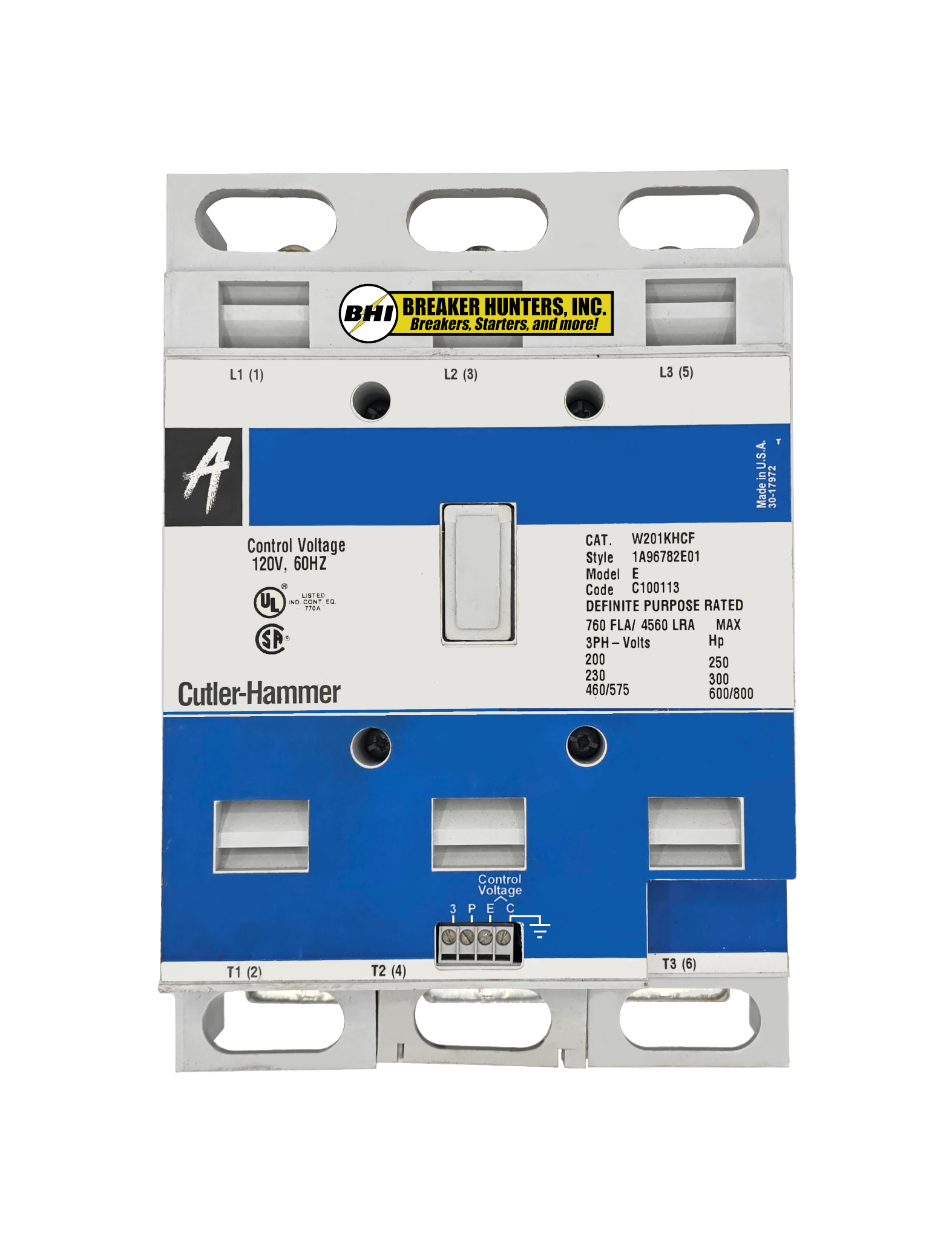

Eaton Contactor, Definite Purpose Rated, 760 FLA/4560 LRA, 3 Poles, Non-Reversing, 120VAC Coil at 60HZ, Full Voltage 600VAC, Open Style No Enclosure, Advantage Series, Max HP Ratings: 250HP @ 200 Motor Volts AC, 300HP @ 230 Motor Volts AC, 600/800HP @ 460/575 Motor Volts AC, With Terminals Standard.
This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Amperage | 760 FLA |
| Coil Voltage | 120VAC |
| Phase | 3 |
| Voltage Max | 600 |
| Nema Size | Definite Purpose Rated |
| Coil Type | Magnetic |
| Reversing or Non-Reversing | Non-Reversing |
| Maximum Ratings | 250HP @ 200 Motor Volts AC, 300HP @ 230 Motor Volts AC, 600/800HP @ 460/575 Motor Volts AC |
| Application | Full Voltage |
| Style | Advantage |
| Poles | 3 |
