W+200MLCFC

Call for Price

New Surplus

Click for Info
$695.00

Certified Reconditioned

Click for Info
$495.00

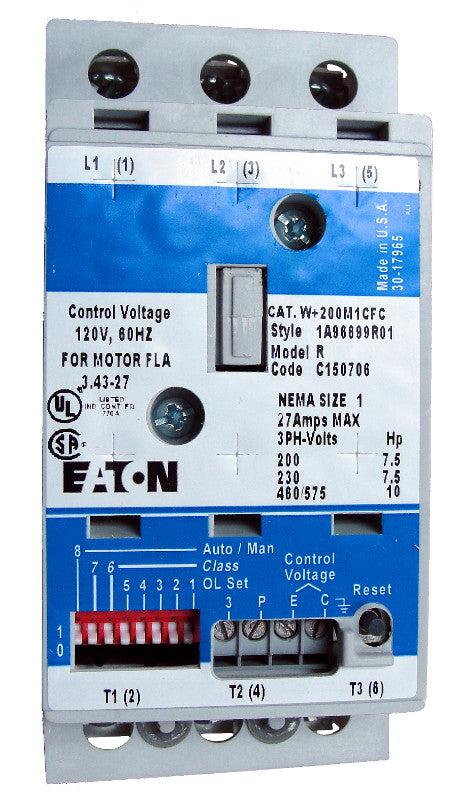

This product image represents a base model and is for identification purposes only.

Product Description


W200 Class Type, Magnetic Motor Starter, Nema Size 1 Lower Range, 3 Poles, Non-Reversing, 120VAC Coil at 60HZ, Full Voltage 600VAC, Overload Protection Standard, Open Style No Enclosure, Across the Line Starting and Stopping, Advantage Enhanced Series, Smaller Physical Size Than Other Types, Max HP Ratings: 1 @ 200/230 Motor Volts AC, 1/4 to 2 @ 460 Motor Volts AC, 2 @ 460/575 Motor Volts AC, Motor FLA (1.15-1.25 S.F.) .47-3.81 and (1.0 S.F.) .51-4.14. Lower Range of Nema Size 1. For motor full load current (FLA) range of .47A – 3.81A with a 1.15 to 1.25 service factor and for motor hp range of 1/4 hp to 2 hp at 460V.

Specifications


Manufacturer Eaton / Cutler Hammer
Warranty One Year
Coil Voltage 120VAC
Phase 3
Voltage Max 600
Nema Size 1
Class W200
Coil Type Magnetic
Reversing or Non-Reversing Non-Reversing
Maximum Ratings 1 @ 200/230 Motor Volts AC, 1/4 to 2 @ 460 Motor Volts AC, 2 @ 460/575 Motor Volts AC
Application Full Voltage
Style Advantage Enhanced
Poles 3

Related Products

Contact Us

"Click for Info" items are temporarily out of stock items. If you would like for us to order these items for you, please contact us through the links below. These items may be frequently unavailable from our usual supply channels, and as such will fluctuate in price depending on our cost at the time of placing the special order for you. The price shown on the product listing will be based upon our previous supply cost the last time this item was ordered and is subject to change at any time.
