Product Description
Specs are as follows:
W+200 Class Type, Magnetic Motor Starter, Nema Size 3, 90 Amps, 3 Poles, Non-Reversing, 120VAC Coil at 60HZ, Full Voltage 600VAC, Overload Protection Standard, Open Style No Enclosure, Across the Line Starting and Stopping, Advantage Enhanced Series, Smaller Physical Size Than Other Types, Max HP Ratings: 25 @ 200 Motor Volts AC, 30 @ 230 Motor Volts AC, 50 @ 460/575 Motor Volts AC, Motor FLA (1.15-1.25 S.F.) 9.90-90.00 and (1.0 S.F.) 10.80-90.00.

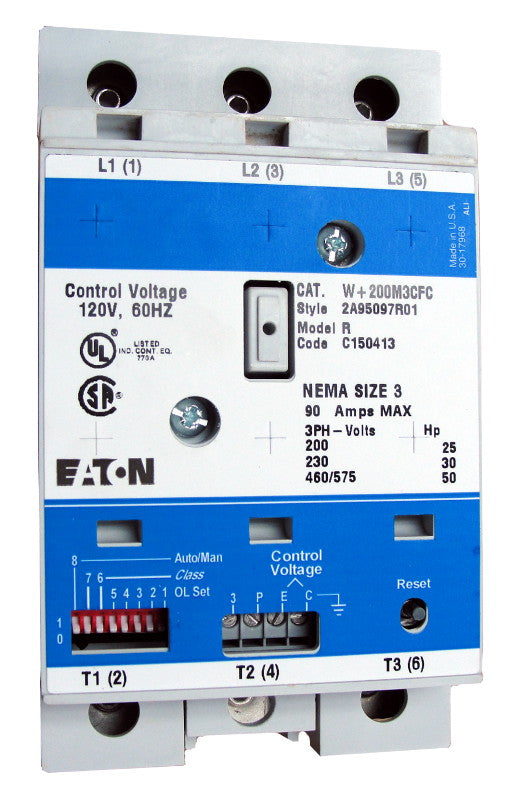

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Amperage | 90 |
| Coil Voltage | 120VAC |
| Phase | 3 |
| Voltage Max | 600 |
| Nema Size | 3 |
| Class | W200 |
| Coil Type | Magnetic |
| Reversing or Non-Reversing | Non-Reversing |
| Maximum Ratings | 10 @ 200 Motor Volts AC, 15 @ 230 Motor Volts AC, 25 @ 460/575 Motor Volts AC |
| Application | Full Voltage |
| Style | Advantage Enhanced |
| Poles | 3 |
