Product Description
Specs are as follows:

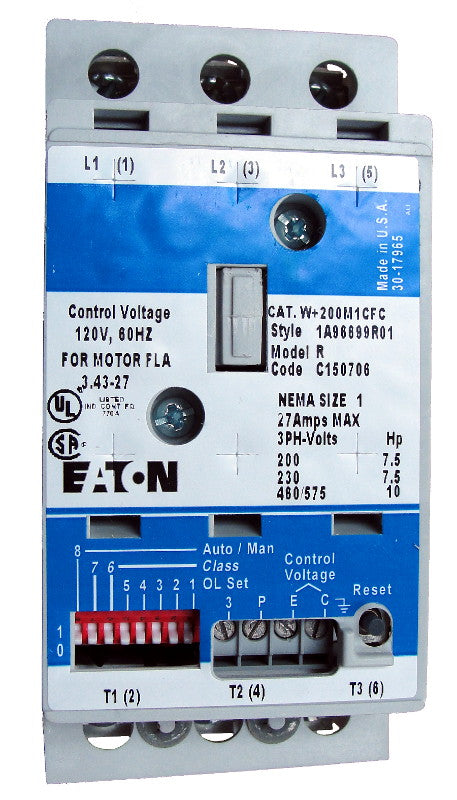

W+200 Class Type, Magnetic Motor Starter, Nema Size 1, 27 Amps, 3 Poles, Non-Reversing, 120VAC Coil at 60HZ, Full Voltage 600VAC, Overload Protection Standard, Open Style No Enclosure, Across the Line Starting and Stopping, Advantage Enhanced Series, Smaller Physical Size Than Other Types, Max HP Ratings: 7 1/2 @ 200/230 Motor Volts AC, 10 @ 460/575 Motor Volts AC, Motor FLA (1.15-1.25 S.F.) 3.15-27.00 and (1.0 S.F.) 3.43-27.00.
Look under Parts & Accessories to order accessories used to create additional configurations for this unit.
Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Amperage | 27 |
| Coil Voltage | 120VAC |
| Phase | 3 |
| Voltage Max | 600 |
| Nema Size | 1 |
| Class | W200 |
| Coil Type | Magnetic |
| Reversing or Non-Reversing | Non-Reversing |
| Maximum Ratings | 7 1/2 @ 200/230 Motor Volts AC, 10 @ 460/575 Motor Volts AC |
| Application | Full Voltage |
| Style | Advantage Enhanced |
| Poles | 3 |
