Product Description
Specs are as follows:

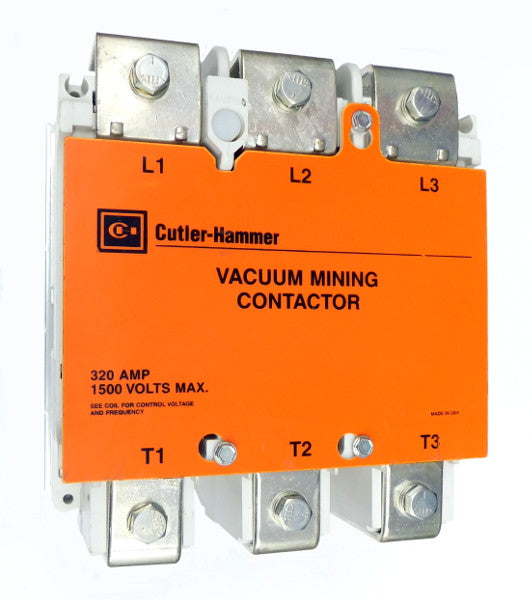

Vacuum Motor Contactor, Mining Rated, 320 Amps, 3 Poles, 110/120V AC Coil, Full Voltage 1500VAC, Open Style No Enclosure, Non-Reversing, Max HP Ratings:100 @ 200VAC, 125 @ 230VAC, 200 @ 380VAC, 250 @ 460VAC, 300 @ 575VAC, 450 @ 800VAC, 900 @ 1500VAC, No Lugs Standard
This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Amperage | 320 |
| Coil Voltage | 110/120V |
| Phase | 3 |
| Voltage Max | 1500 |
| Enclosure | Open |
| Reversing or Non-Reversing | Non-Reversing |
| Maximum Ratings | 100 HP @ 200VAC, 125 HP @ 230VAC, 200 HP @ 380VAC, 250 HP @ 460VAC, 300 HP @ 575VAC, 450 HP @ 800VAC, 900 HP @ 1500VAC |
| Standard Lug Type | No Lugs |
