Specs are as follows:

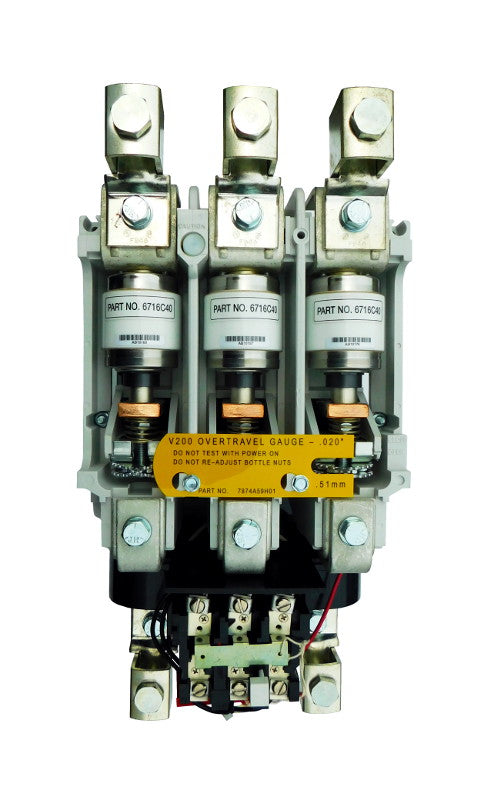

Vacuum Motor Starter, Special Purpose Rated, 320 Amps, 3 Poles, 110/120V AC Coil, Motor Voltage 1500V AC Max, Open Style No Enclosure, Non-Reversing, Max HP Ratings: 100 HP @ 200VAC, 125 HP @ 230VAC, 200 HP @ 380VAC, 250 HP @ 460VAC, 300 HP @ 575VAC, 450 HP @ 800VAC, 500 HP @ 1000VAC, 900 HP @ 1500VAC, Line and Load End Terminals Standard
Look under Parts & Accessories to order accessories used to create additional configurations for this unit.
Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
|Manufacturer||Eaton / Cutler Hammer|
|Reversing or Non-Reversing||Non-Reversing|
|Maximum Ratings||100 HP @ 200VAC, 125 HP @ 230VAC, 200 HP @ 380VAC, 250 HP @ 460VAC, 300 HP @ 575VAC, 450 HP @ 800VAC, 500 HP @ 1000VAC, 900 HP @ 1500VAC|
|Standard Lug Type||Line and Load|
