Specs are as follows:

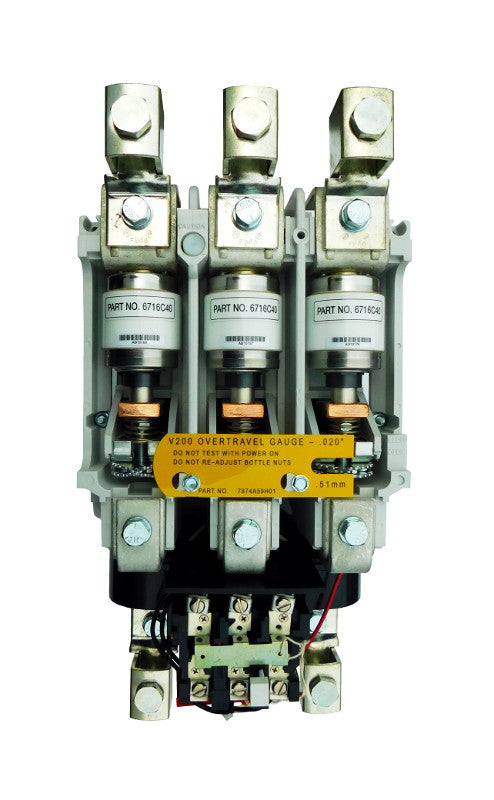

Vacuum Motor Starter, Industrial Rated, NEMA Size 5, 270 Amps, 3 Poles, 220/240V AC Coil, Motor Voltage 575V AC Max, Open Style No Enclosure, Non-Reversing, Max HP Ratings: 75 @ 200VAC, 100 @ 230VAC, 150 @ 380VAC, 200 @ 460VAC, 200 @ 575VAC, Line and Load End Terminals Standard
This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
|Manufacturer||Eaton / Cutler Hammer|
|Reversing or Non-Reversing||Non-Reversing|
|Maximum Ratings||75 HP @ 200VAC, 100 HP @ 230VAC, 150 HP @ 380VAC, 200 HP @ 460VAC, 200 HP @ 575VAC|
|Standard Lug Type||Line and Load|
