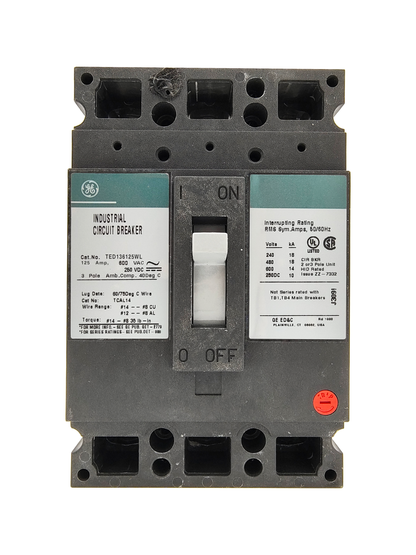

TED136125WL
Product Description
TED Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Non-interchangeable Trip Unit, 125 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 18 Kiloampere @ 240/480V AC, 14 Kiloampere @ 600V AC, 10 Kiloampere @ 500V DC, Line and Load End Terminals Standard.

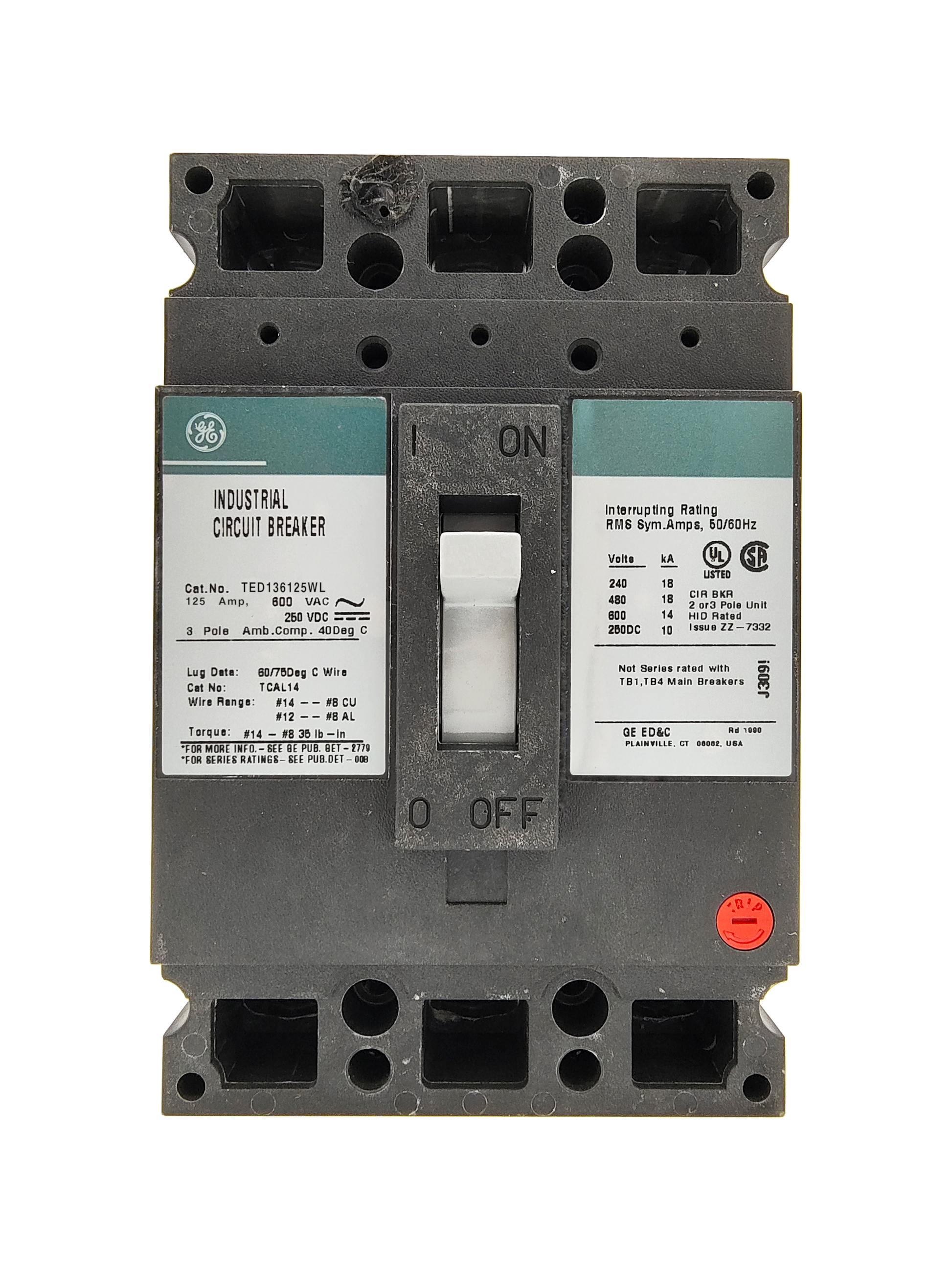

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | General Electric GE |
|---|---|
| Warranty | One Year |
| Connection | Bolt On |
| Frame Type | E |
| Amperage | 125 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 18 Kiloampere @ 240/480V AC, 14 Kiloampere @ 600V AC, 10 Kiloampere @ 500V DC |
| Standard Lug Type | Line and Load |
New Surplus
Certified Reconditioned
Qty in Stock: 1
$575.00
