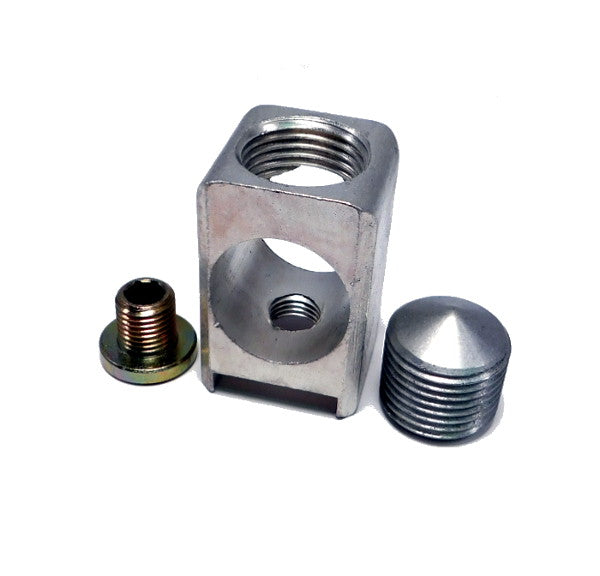

K-Frame Terminals
This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Product Description
Specs are as follows:
Terminals, K-Frame Style, Pressure Type Lugs or Connectors, Field or Factory Mounted, Used for Line and or Load Connections, 350 Ampere Maximum Breaker Rating, Aluminum Body Material, Cu/Al Wire Type, AWG Wire Range/Number of Conductors 250-500/1.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Connection | Pressure Type Clamp |
| Frame Type | K |
| Amperage | 350 (max) |
| Terminal Body Material | Aluminum (Standard) |
| Conductors | 1 |
| AWG Wire Range | 250 - 500 kcmil |
