Specs are as follows:

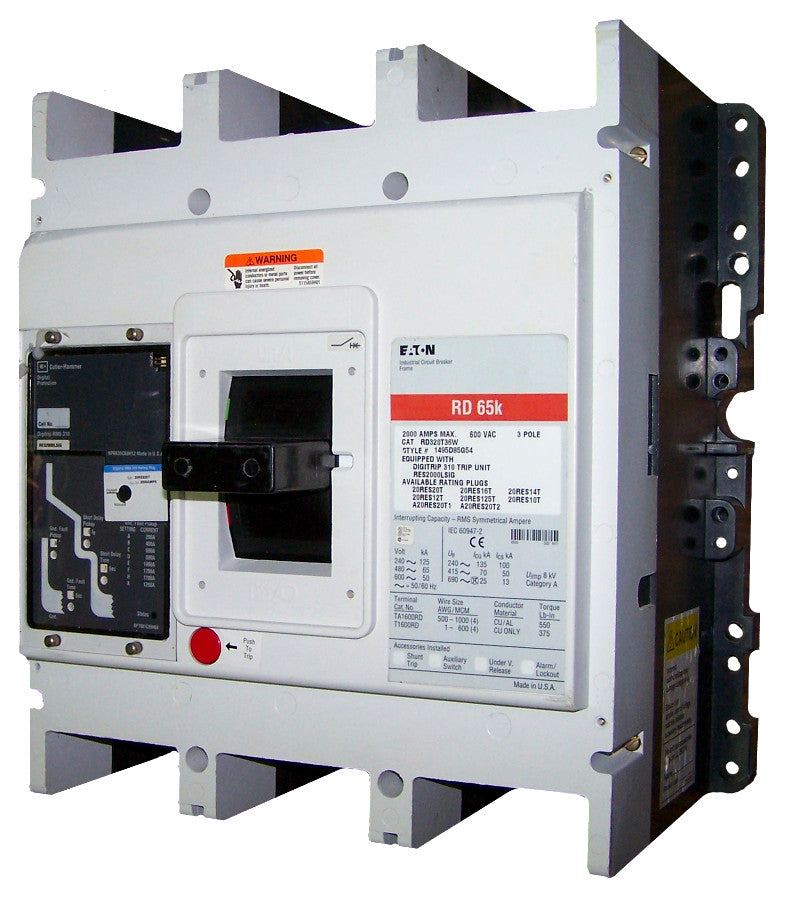

RD Frame Style, Molded Case Circuit Breaker, Electronic Non-Interchangeable Trip Unit(Digitrip RMS 310), (LSG)Trip Unit Functions: L-Adjustable Long Delay Pickup(By Adjustable Rating Plug), S-Adjustable Short Delay Pickup with Fixed Short Delay Time(I2t Response) or Adjustable Short Delay Time(Flat Response) G-Adjustable Ground Fault Pickup with Adjustable Ground Fault Time(Flat Response), 2500 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 125 Kiloampere @ 240VAC, 65 Kiloampere @ 480VAC, 50 Kiloampere @ 600VAC, Without Terminals Standard.
Follow the links below to order accessories used to create additional configurations for this unit.
1. Optional Auxiliary Switches
2. Optional Rating Plugs
3. Optional Shunt Trips
4. Optional Terminal/Lug Kits
5. Optional Undervoltage Releases (UVRs)
Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
|Manufacturer||Eaton / Cutler Hammer|
|Interrupting Capacity Rating||125 Kiloampere @ 240VAC, 65 Kiloampere @ 480VAC, 50 Kiloampere @ 600VAC|
|Trip Setting||2-8 Times the Continuous Ampere Rating|
|Standard Lug Type||Without Terminals Standard|
