Product Description
Specs are as follows:
PXF Frame Style, Molded Case Circuit Breaker, 1200 Amp Sensor Size, Electronic Non-interchangeable Trip Unit, LSI Trip Unit Functions, 900 Ampere at 40 Degree Celsius, 3 Pole, Interrupting Ratings: 125 Kiloampere @ 240 VAC, 100 Kiloampere @ 480 VAC, 65 Kiloampere @ 600 VAC, with ARP075 Rating Plug Installed Standard, Without Terminals Standard, with Padlock Attachment Installed.

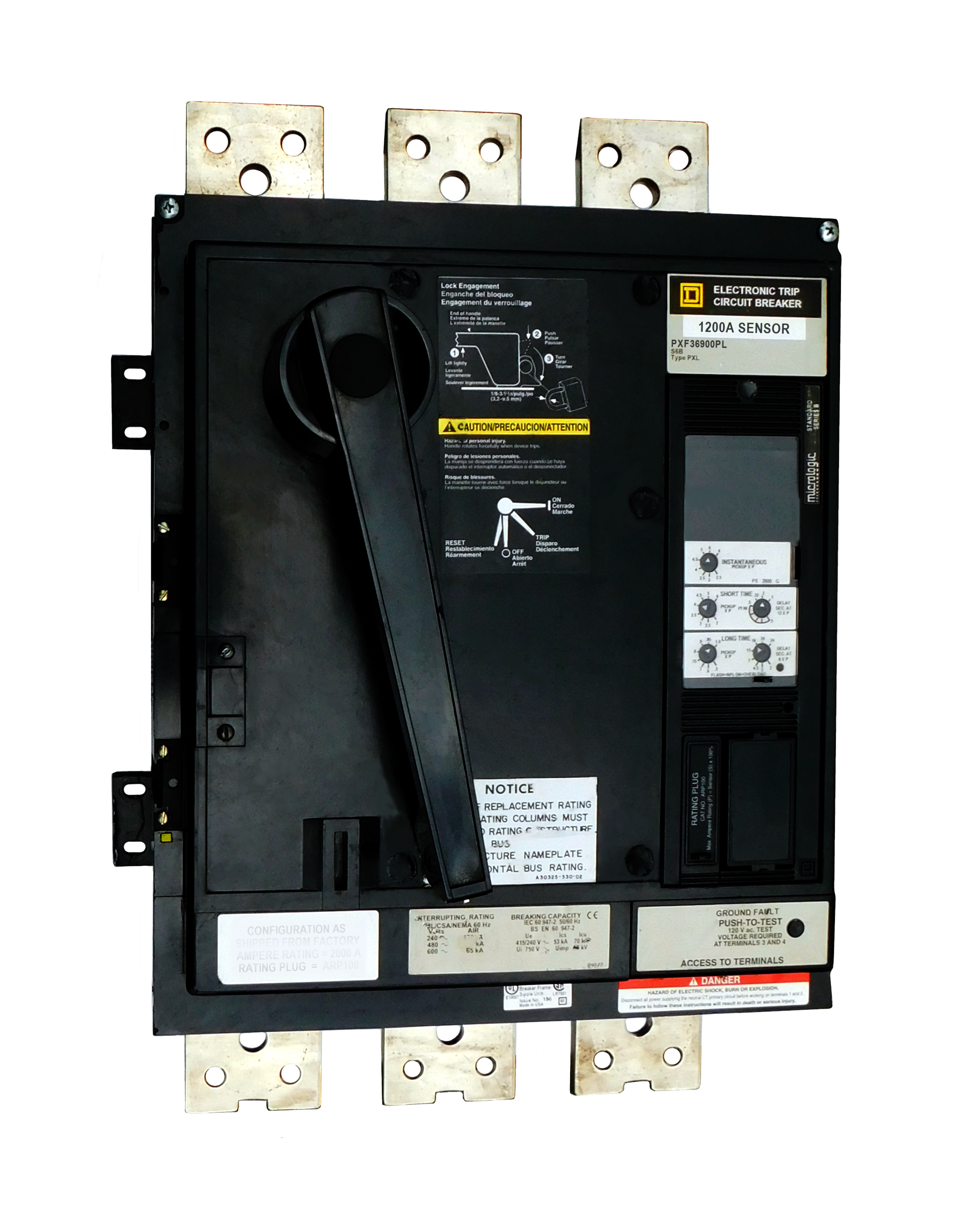

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Square-D |
|---|---|
| Warranty | One Year |
| Connection | Bolt On |
| Frame Type | P |
| Amperage | 900 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 125 Kiloampere @ 240 VAC, 100 Kiloampere @ 480 VAC, 65 Kiloampere @ 600 VAC |
| Standard Lug Type | Without Terminals Standard |
