PXF36800GPL
Product Description
PXF Frame Style, Molded Case Circuit Breaker, 1200 Amp Sensor Size, Electronic Non-interchangeable Trip Unit, LSIG Trip Unit Functions, 800 Ampere at 40 Degree Celsius, 3 Pole, Interrupting Ratings: 125 Kiloampere @ 240 VAC, 100 Kiloampere @ 480 VAC, 65 Kiloampere @ 600 VAC, with ARP067 Rating Plug Installed Standard, With Padlock Attachment, Without Terminals Standard.

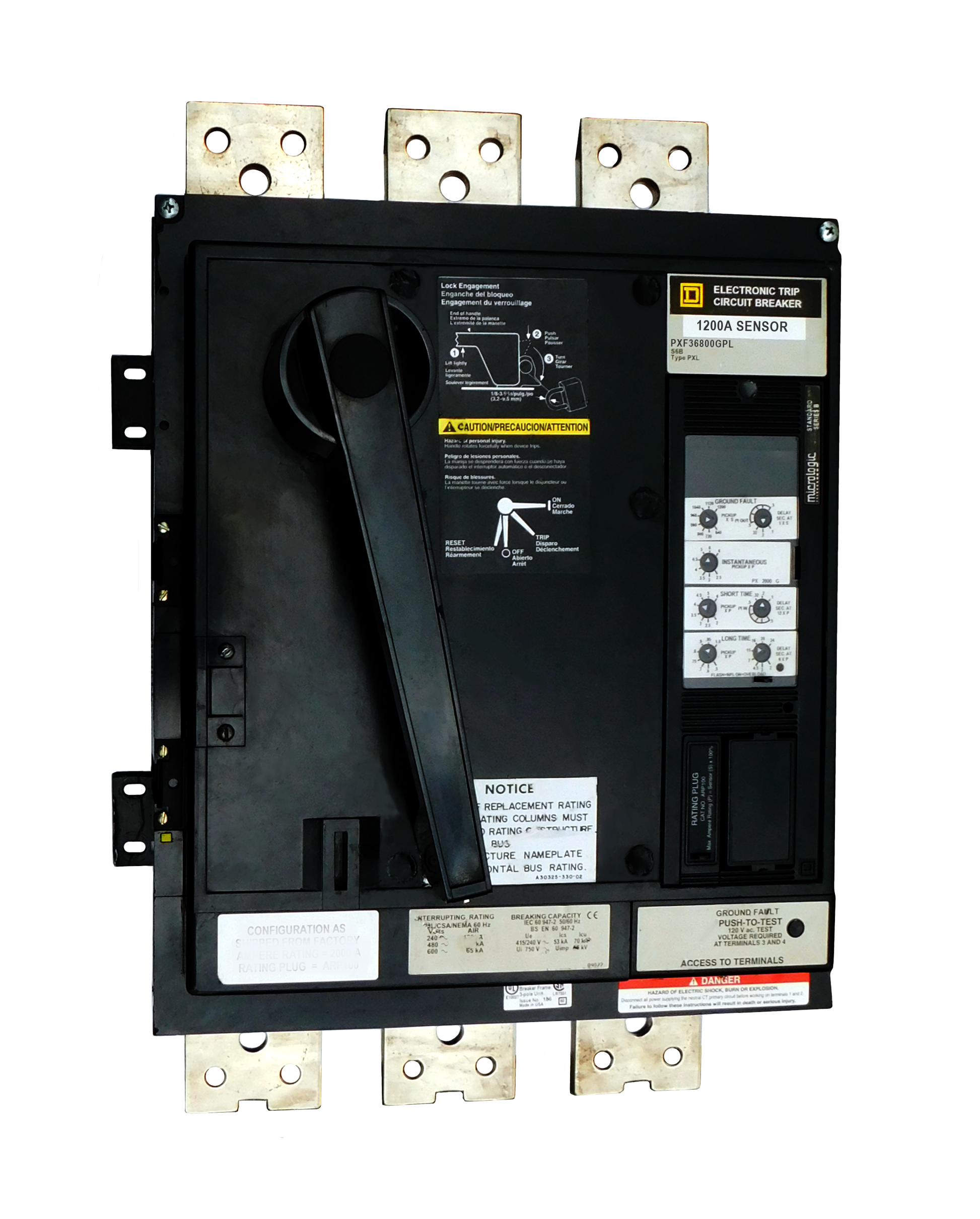

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Square-D |
|---|---|
| Warranty | One Year |
| Connection | Bolt On |
| Frame Type | P |
| Amperage | 800 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 125 Kiloampere @ 240 VAC, 100 Kiloampere @ 480 VAC, 65 Kiloampere @ 600 VAC |
| Standard Lug Type | Without Terminals Standard |
New Surplus
Certified Reconditioned
Qty in Stock: 1
