PCFG32500F (Frame Only)
Product Description

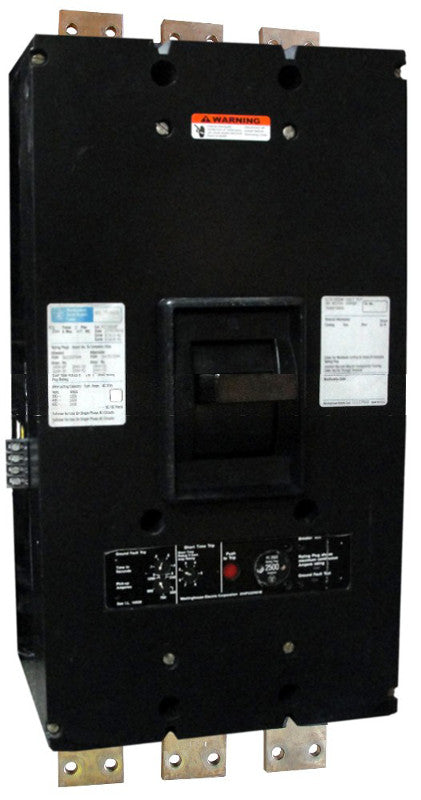

PCFG Frame Style, Ground Fault Molded-Case Circuit Breaker, SELTRONIC Solid State Electronic Trip Unit, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 125 Kiloampere @ 240VAC, 100 Kiloampere @ 480VAC, 100 Kiloampere @ 600VAC, Front Connected, Frame Only (No Rating Plug Included), Frame Rated at 2500 Ampere, Without Terminals Standard.
This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Westinghouse |
|---|---|
| Warranty | One Year |
| Configuration | Front Connected |
| Connection | |
| Frame Type | PCFG |
| Amperage | Rated up to 2500A |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 125 Kiloampere @ 240VAC, 100 Kiloampere @ 480VAC, 100 Kiloampere @ 600VAC |
| Standard Lug Type | Without Terminals Standard |
Certified Reconditioned
Qty in Stock: 1
$33,495.00
Couldn't load pickup availability
