Product Description
Specs are as follows:

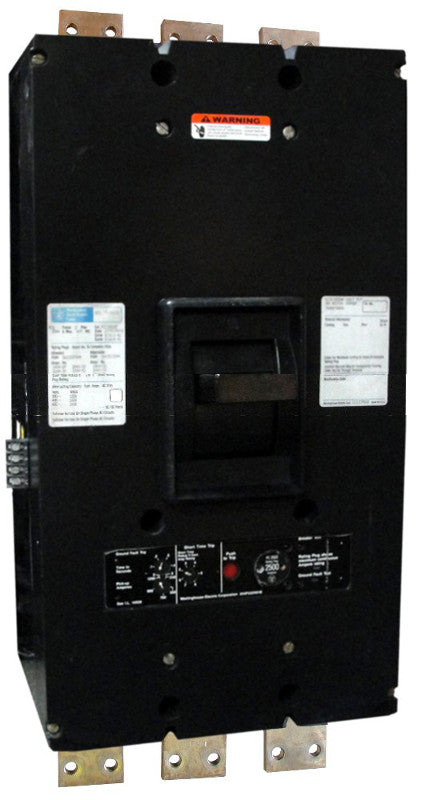

PCFG Frame Style, Ground Fault Molded-Case Circuit Breaker, SELTRONIC Solid State Electronic Trip Unit, 1800 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 125 Kiloampere @ 240VAC, 100 Kiloampere @ 480VAC, 100 Kiloampere @ 600VAC, Front Connected, 2000A Maximum Frame Size, 1800A Rating Plug Installed, Without Terminals Standard.
This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Westinghouse |
|---|---|
| Warranty | One Year |
| Configuration | Front Connected |
| Connection | |
| Frame Type | PCFG |
| Amperage | 1800 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 125 Kiloampere @ 240VAC, 100 Kiloampere @ 480VAC, 100 Kiloampere @ 600VAC |
| Trip Setting | 3,600-14,400 |
| Standard Lug Type | Without Terminals Standard |
