Product Description
Specs are as follows:

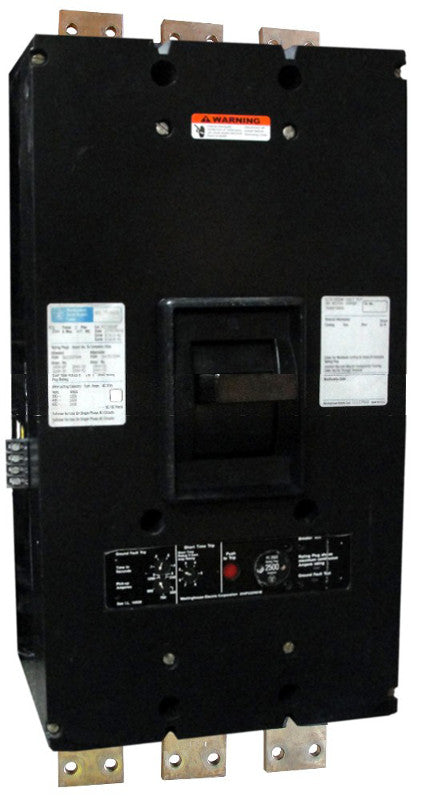

PCFG Frame Style, Ground Fault Molded-Case Circuit Breaker, SELTRONIC Solid State Electronic Trip Unit, 1200 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 125 Kiloampere @ 240VAC, 100 Kiloampere @ 480VAC, 100 Kiloampere @ 600VAC, Front Connected, Frame Rated at 2000 Ampere
Look under Parts & Accessories to order accessories used to create additional configurations for this unit.
Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
Manufacturer | Westinghouse / Cutler-Hammer |
---|---|
Warranty | One Year |
Configuration | Front Connected |
Connection | Bolt On |
Frame Type | PCFG |
Amperage | 1200 |
Poles | 3 |
Voltage Max | 600 |
Interrupting Capacity Rating | 125 Kiloampere @ 240VAC, 100 Kiloampere @ 480VAC, 100 Kiloampere @ 600VAC |
Trip Setting | 2400-9600 |
Standard Lug Type | Varies |
