PCCF32500F (Frame Only)
Product Description
PCC Frame Style, Molded-Case Circuit Breaker, 100% Rated, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 125 Kiloampere @ 240VAC, 100 Kiloampere @ 480VAC, 100 Kiloampere @ 600VAC, Front Connected, Frame Rated at 2500 Ampere, Frame Only (No Rating Plug Included), Without Terminals Standard.

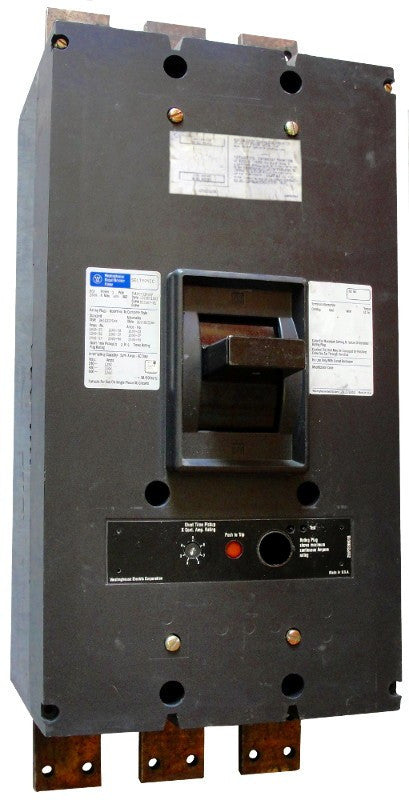

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Westinghouse |
|---|---|
| Warranty | One Year |
| Connection | Front |
| Frame Type | PC (Frame Only) |
| Amperage | Rated up to 2500 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 125 Kiloampere @ 240VAC, 100 Kiloampere @ 480VAC, 100 Kiloampere @ 600VAC |
| Standard Lug Type | Without Terminals Standard |
Certified Reconditioned
