Product Description
Specs are as follows:
PCCA Frame Style, Molded-Case Circuit Breaker, 100% Rated, Seltronic Solid State Electronic Trip Unit, with LS - Long-Time and Short-Time Trip Functions, 2000 Amps at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 125 Kiloampere @ 240VAC, 100 Kiloampere @ 480VAC, 100 Kiloampere @ 600VAC, Rear Connected, 2000A Maximum Frame Size, Complete Breaker with 2000 Amp Rating Plug Installed, Without Terminals Standard.

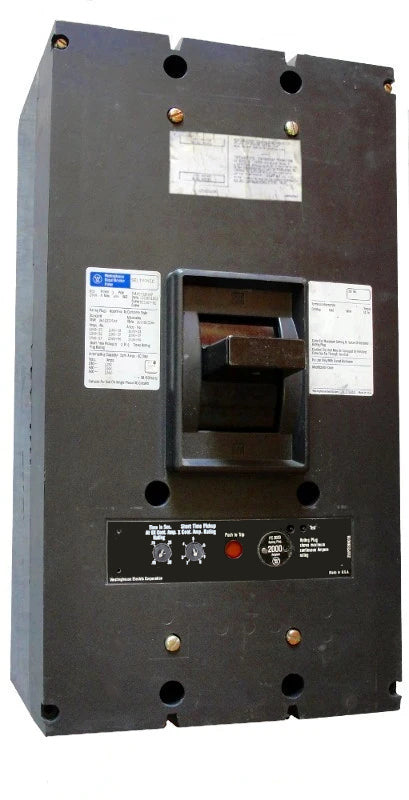

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Westinghouse |
|---|---|
| Warranty | One Year |
| Connection | Rear |
| Frame Type | PCCA |
| Amperage | 2000 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 125 Kiloampere @ 240VAC, 100 Kiloampere @ 480VAC, 100 Kiloampere @ 600VAC |
| Trip Setting | 4,000-16,000 |
| Standard Lug Type | Without Terminals Standard |
