Product Description
Specs are as follows:
PBF Frame Style, Tri-Pac, Molded-Case Circuit Breaker, Long Delay and Magnetic Non-Interchangeable Trip Unit, 1200 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, 2000-6000 Trip Range, Interrupting Ratings: 200 Kiloampere @ 240VAC, 200 Kiloampere @ 480VAC, 200 Kiloampere @ 600VAC, Front Connected, With Current Limiters 1600PBPR30 Installed Standard, Without Terminals Standard.

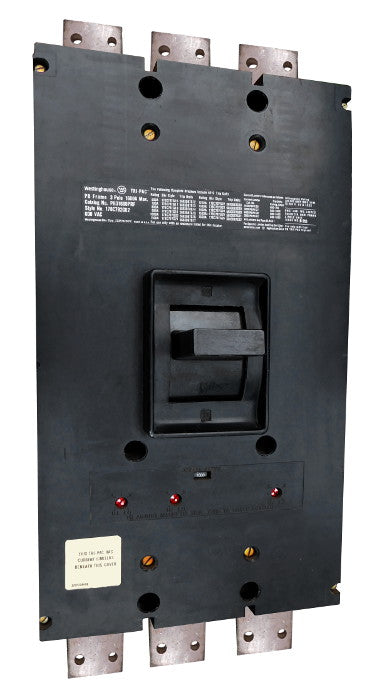

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Westinghouse |
|---|---|
| Warranty | One Year |
| Connection | |
| Frame Type | PB |
| Amperage | 1200 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 200 Kiloampere @ 240VAC, 200 Kiloampere @ 480VAC, 200 Kiloampere @ 600VAC |
| Trip Setting | 2000-6000 |
| Standard Lug Type | Without Terminals Standard |
