This listing is for a frame only. Click the following for a complete breaker with trip unit installed:
PB32500 (2500 Amp Trip Unit Installed)
Lower amperage trip units can be installed in this frame. If you need a lower amperage trip unit installed, please call to place your order.
Look under Parts & Accessories or follow the links below to order accessories used to create additional configurations for this unit.
1. Auxiliary Switches
2. Shunt Trips
3. Trip Units
4. Undervoltage Releases (UVRs)
Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.

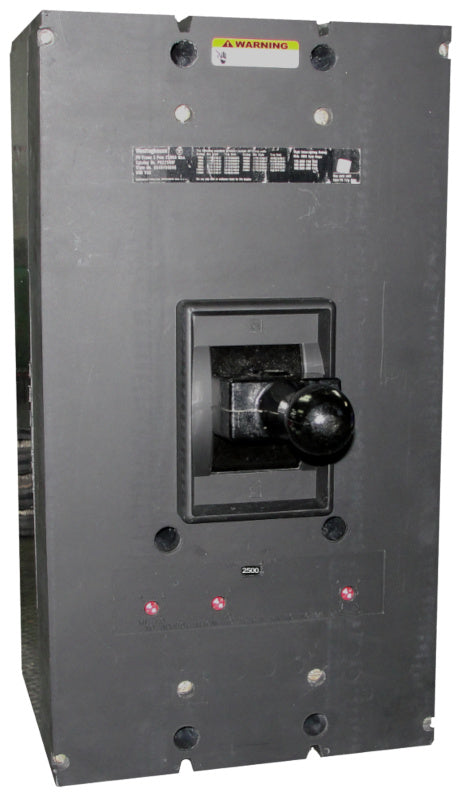

PB Frame Style, Molded-Case Circuit Breaker, Rear Connected, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 125 Kiloampere @ 240VAC, 100 Kiloampere @ 480VAC, 100 Kiloampere @ 600VAC, Frame Rated at 2500 Ampere, Frame Only (No Trip Unit Included)
PB32500 (2500 Amp Trip Unit Installed)
Lower amperage trip units can be installed in this frame. If you need a lower amperage trip unit installed, please call to place your order.
Look under Parts & Accessories or follow the links below to order accessories used to create additional configurations for this unit.
1. Auxiliary Switches
2. Shunt Trips
3. Trip Units
4. Undervoltage Releases (UVRs)
Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Product Description
PB Frame Style, Molded-Case Circuit Breaker, Rear Connected, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 125 Kiloampere @ 240VAC, 100 Kiloampere @ 480VAC, 100 Kiloampere @ 600VAC, Frame Rated at 2500 Ampere, Frame Only (No Trip Unit Included)
Specifications
| Manufacturer | Westinghouse / Cutler-Hammer |
|---|---|
| Warranty | One Year |
| Connection | Bolt On |
| Frame Type | PB (Frame Only) |
| Amperage | Rated up to 2500 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 125 Kiloampere @ 240VAC, 100 Kiloampere @ 480VAC, 100 Kiloampere @ 600VAC |
| Standard Lug Type | Varies |
