PAF3616001021

Certified Reconditioned

Qty in Stock: 1

$7,995.00
Delivery
Free with $500 Order
Get it by

Product Description

Specs are as follows:

PAF Frame Style, Molded Case Circuit Breaker, PA-31600-RC Rating Columns, LI Functions, 1600 Ampere at 40 Degree Celsius, 3 Pole, Interrupting Ratings: 65 Kiloampere @ 240 VAC, 50 Kiloampere @ 480 VAC, 42 Kiloampere @ 600 VAC, Without Terminals Standard. With Shunt Installed.

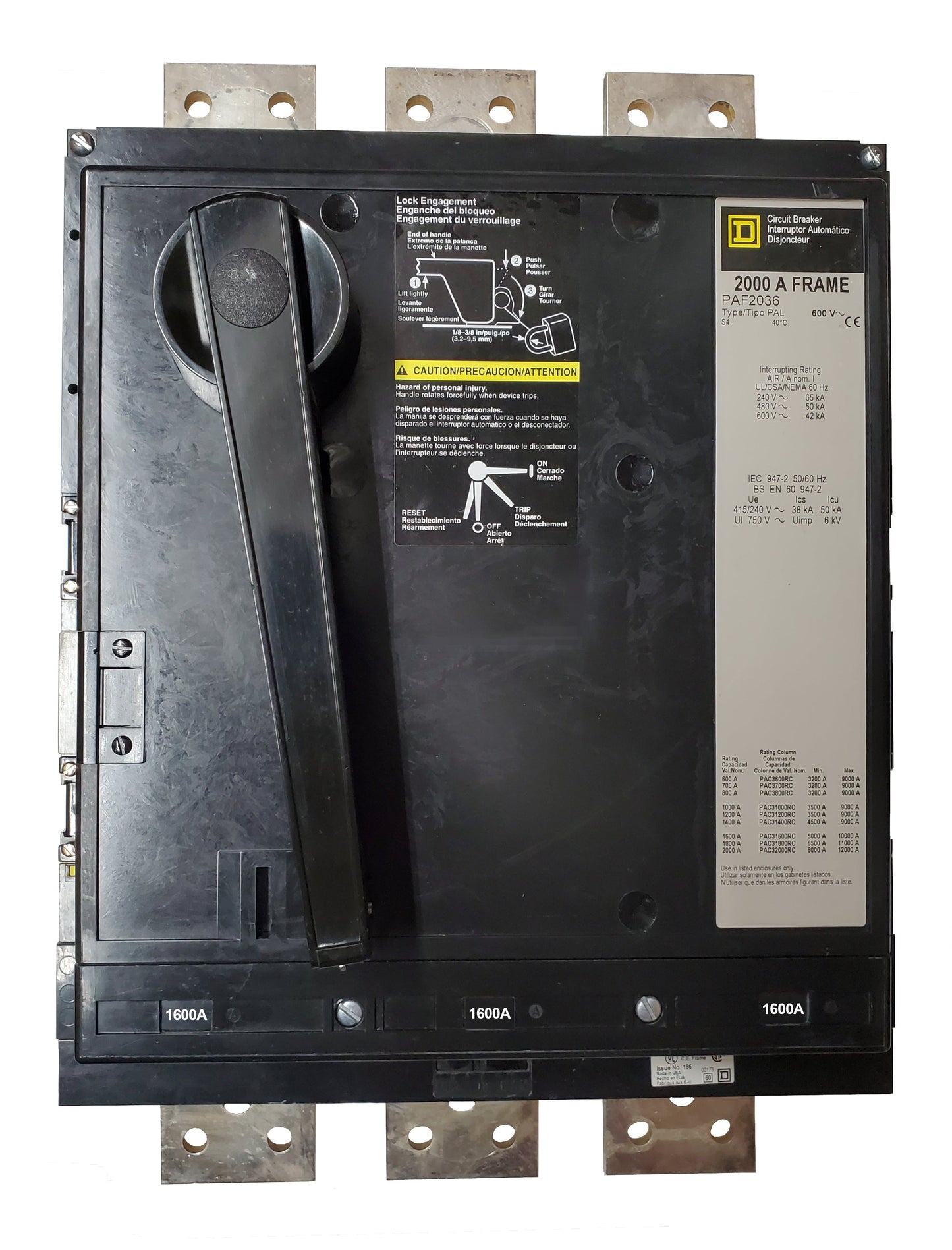

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.

Specifications

Manufacturer Square-D
Warranty One Year
Connection Bolt On
Frame Type P
Amperage 1600
Poles 3
Voltage Max 600
Interrupting Capacity Rating 65 Kiloampere @ 240 VAC, 50 Kiloampere @ 480 VAC, 42 Kiloampere @ 600 VAC
Standard Lug Type Without Terminals Standard
