NGH312032E
Product Description
Series G, Electronic Molded Case Circuit Breaker, NG-frame, Digitrip 310 RMS Electronic LSI trip, 3 Pole, 1200 Ampere at 40 Degree Celsius, 480 Vac, 100 kAIC at 240 VAC, 65 kAIC at 480 VAC, 50/60 Hz, 80% rated.
L - Adjustable Long Delay Pickup (By Adjustable Rating Plug)
S - Adjustable Short Delay Pickup with Fixed Short Delay Time (l2t Response) or Adjustable Short Delay Time (Flat Response)
I - Adjustable Instantaneous Pickup by Setting Short Delay Time to Instantaneous

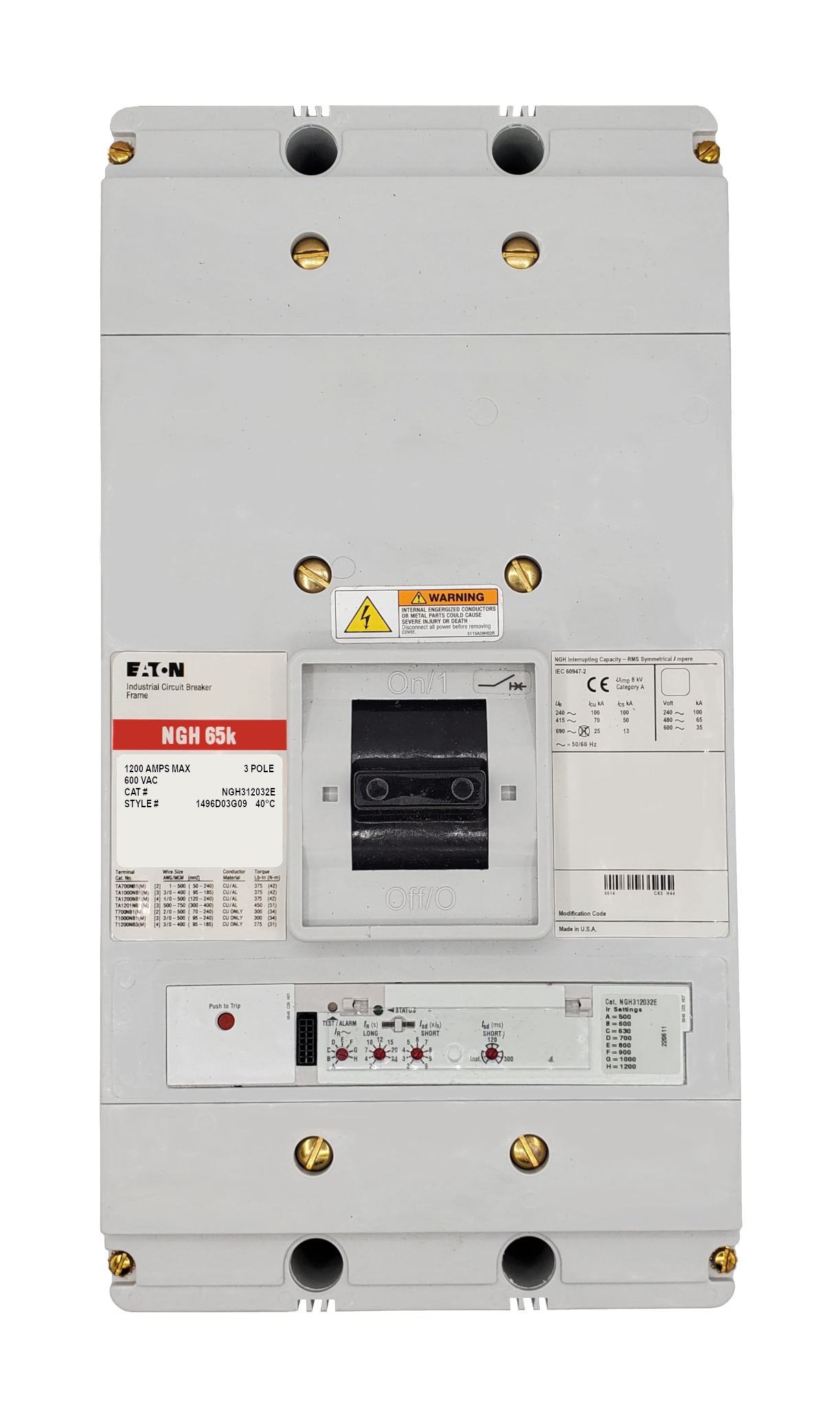

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Connection | Bolt On |
| Frame Type | NG |
| Amperage | 1200 |
| Poles | 3 |
| Voltage Rating | 480 VAC |
| Interrupting Capacity Rating | 100 Kiloampere @ 240VAC, 65 Kiloampere @ 480VAC |
| Standard Lug Type |
New Surplus
Qty in Stock: 1
Certified Reconditioned
Qty in Stock: 1
