NG31200WS03
Product Description
NG Frame Style, Molded Case Generator Circuit Breaker, Electronic Interchangeable Trip Unit, 1250-5000 Trip Range, 1200 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 18 Kiloampere @ 240VAC, 14 Kiloampere @ 480VAC, 10 Kiloampere @ 600VAC, S03 Option Includes: [9-24 VAC or VDC Shunt Trip Installed, Left Pole Mounted, Exiting Opposite Side], Without Terminals Standard.

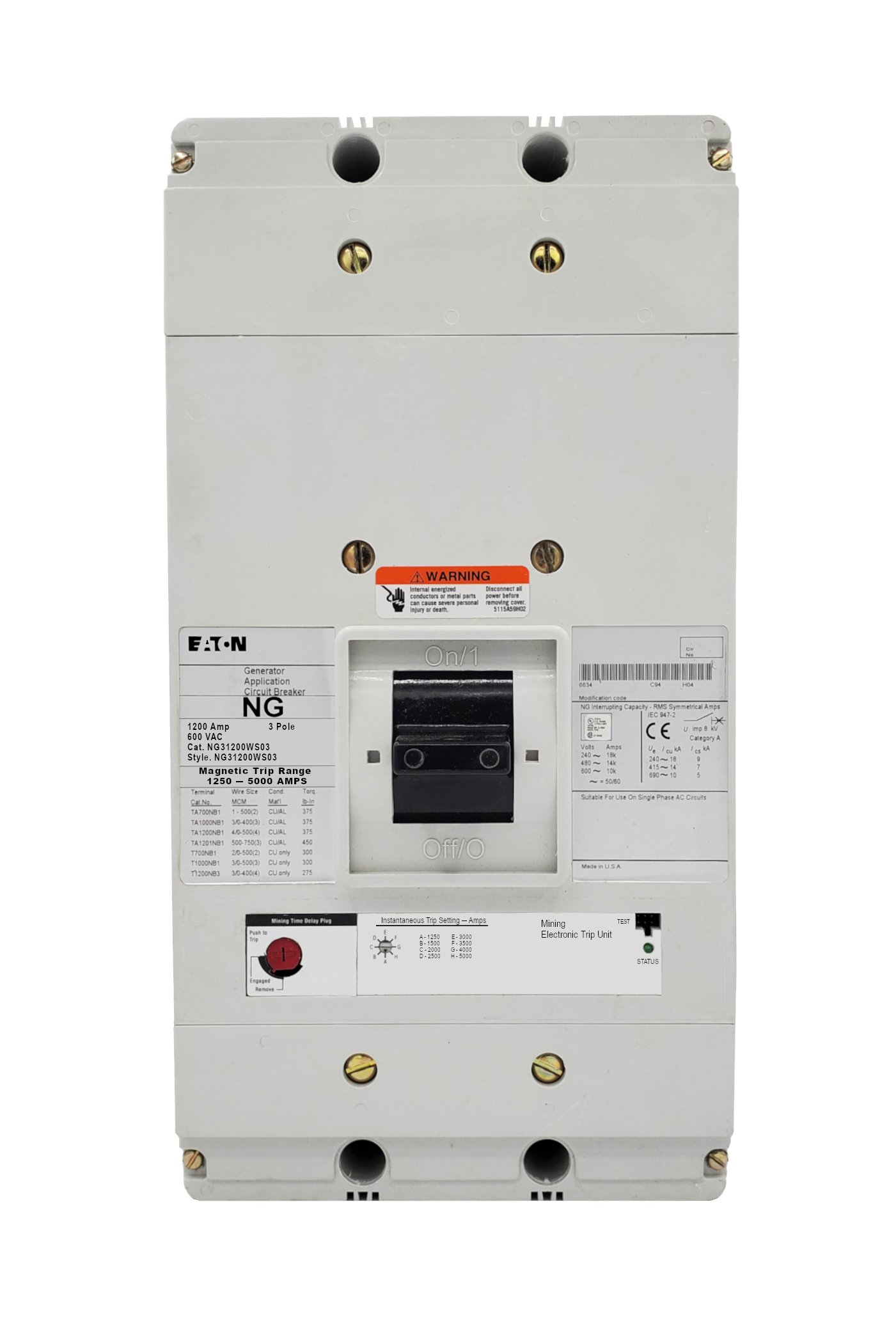

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Configuration | S03 Option Includes: [9-24 VAC or VDC Shunt Trip Installed, Left Pole Mounted, Exiting Opposite Side] |
| Connection | Bolt On |
| Frame Type | N |
| Amperage | 1200 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 18 Kiloampere @ 240VAC, 14 Kiloampere @ 480VAC, 10 Kiloampere @ 600VAC |
| Trip Setting | 1250-5000 |
| Standard Lug Type | Without Terminals Standard |
New Surplus
Qty in Stock: 1
Certified Reconditioned
Qty in Stock: 1
