Specs are as follows:
NG Frame Style, Molded Case Generator Circuit Breaker, Electronic Interchangeable Trip Unit, 1250-5000 Trip Range, 1000 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 18 Kiloampere @ 240VAC, 14 Kiloampere @ 480VAC, 10 Kiloampere @ 600VAC, S03 Option Includes: [9-24 VAC or VDC Shunt Trip Installed, Left Pole Mounted, Exiting Opposite Side], Without Terminals Standard.

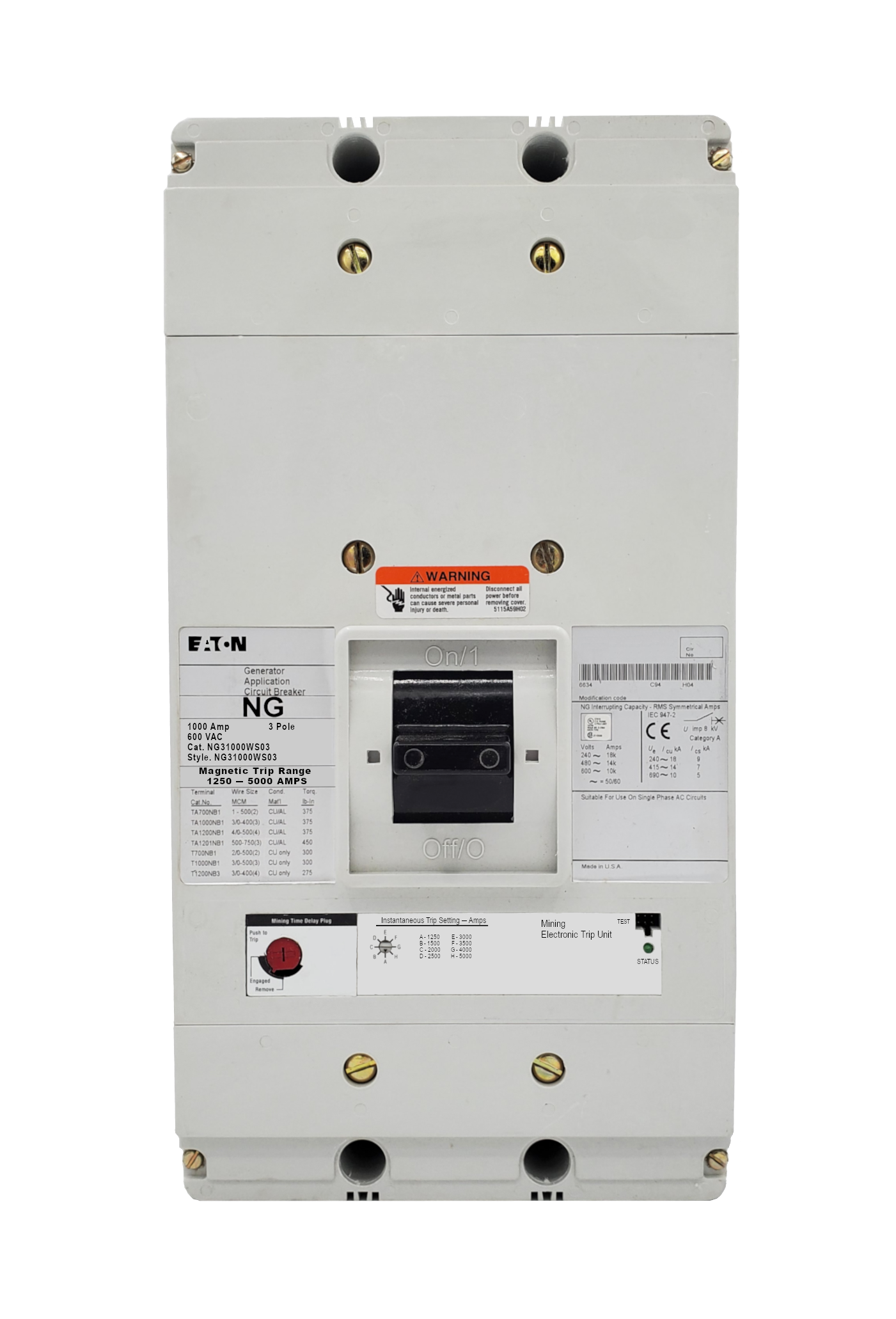

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
|Manufacturer||Eaton / Cutler Hammer|
|Configuration||S03 Option Includes: [9-24 VAC or VDC Shunt Trip Installed, Left Pole Mounted, Exiting Opposite Side]|
|Interrupting Capacity Rating||18 Kiloampere @ 240VAC, 14 Kiloampere @ 480VAC, 10 Kiloampere @ 600VAC|
|Standard Lug Type||Without Terminals Standard|
