Product Description

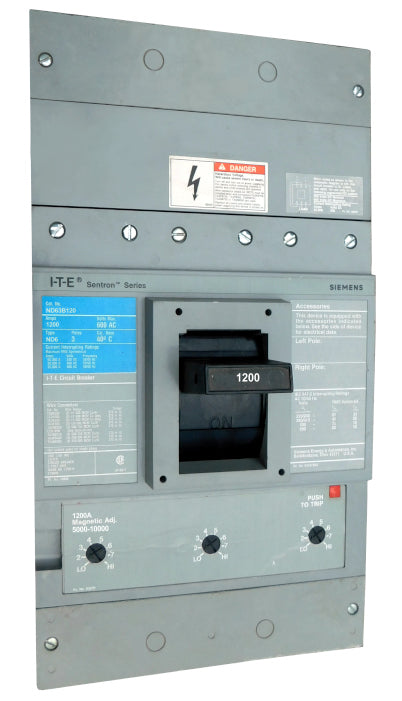

ND Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Interchangeable Trip Unit, 1200 Ampere at 40 Degree Celsius, 3 Pole, 240V AC, 480V AC, and 600V AC @ 50/60 HZ, Interrupting Ratings: 65 Kiloampere @ 240V AC, 50 Kiloampere @ 480V AC, 25 Kiloampere @ 600V AC, Line and Load End Terminals Standard.
This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Siemens / ITE |
|---|---|
| Warranty | One Year |
| Connection | Bolt On |
| Frame Type | ND |
| Amperage | 1200 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 65 Kiloampere @ 240V AC, 50 Kiloampere @ 480V AC, 25 Kiloampere @ 600V AC |
| Trip Setting | 5000-10000 |
| Standard Lug Type | Line and Load Standard |
