Product Description

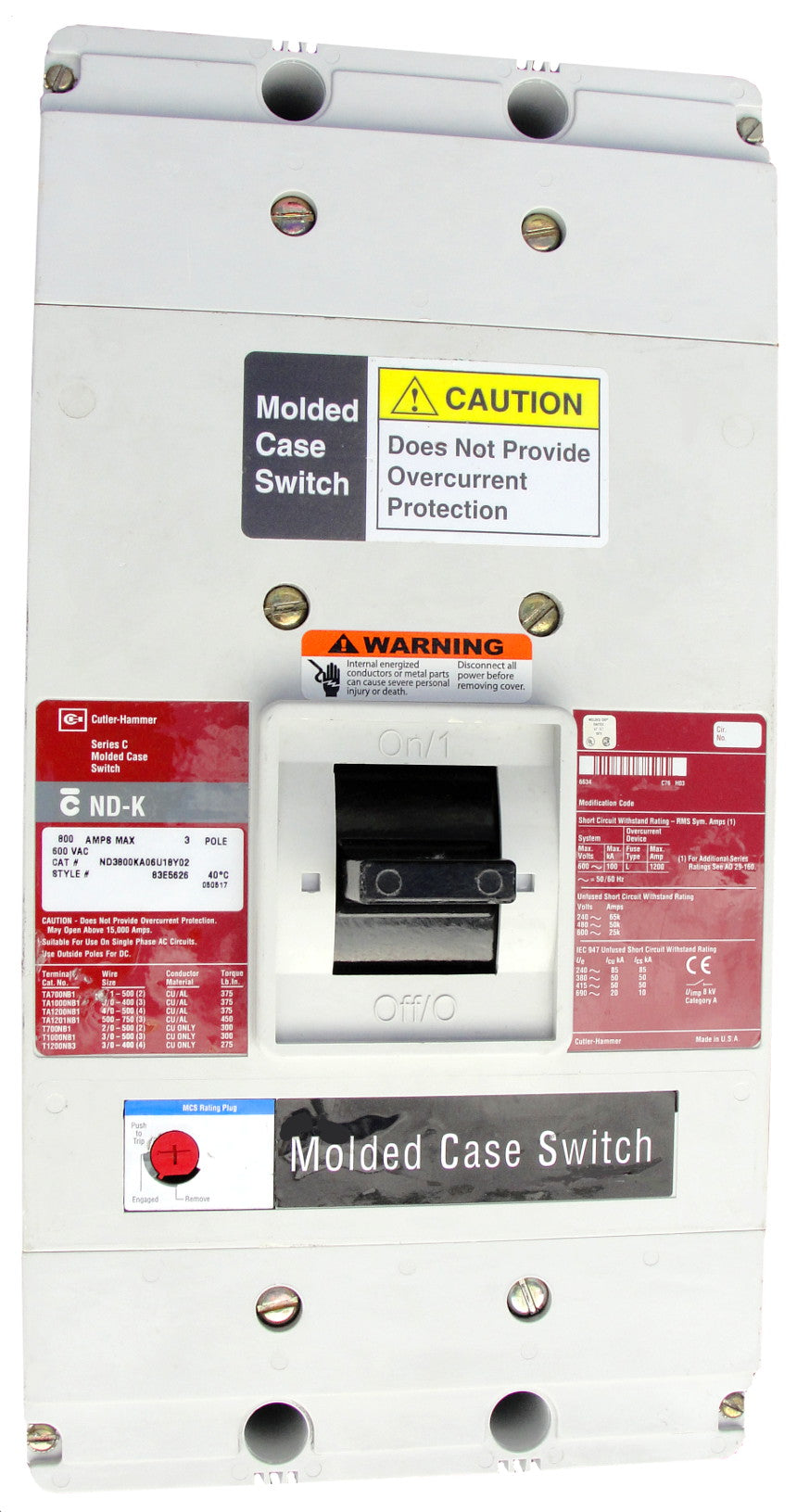

ND Frame Style, High Magnetic Molded Case Switch, 1200 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, Without Terminals
Follow the links below to order accessories used to create additional configurations for this unit.
1. Optional Auxiliary Switches
2. Optional Rating Plugs
3. Optional Shunt Trips
4. Optional Terminal/Lug Kits
5. Optional Undervoltage Releases (UVRs)
Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Connection | Bolt On |
| Frame Type | N |
| Amperage | 1200 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 65 Kiloampere @ 240VAC, 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC |
| Standard Lug Type | Without Terminals |
