Product Description
Specs are as follows:

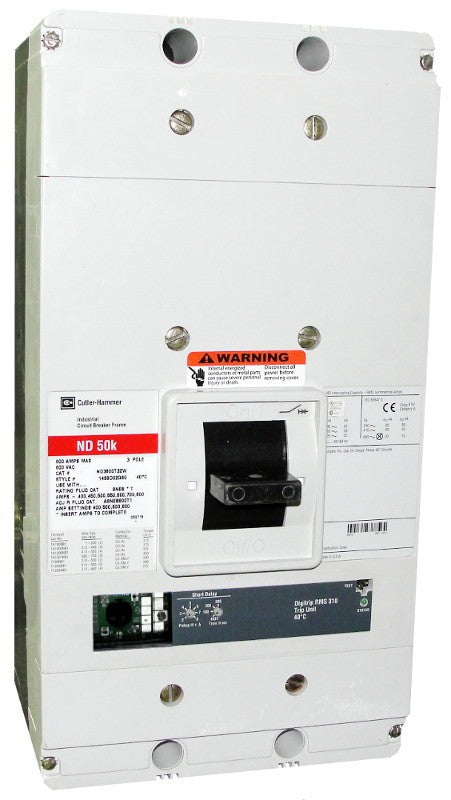

ND Frame Style, Molded Case Circuit Breaker, Electronic Non-Interchangeable Trip Unit(Digitrip RMS 310), LSG Trip Unit Functions, 1200 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, Rating Plug Not Included.
L - Adjustable Long Delay Pickup (By Adjustable Rating Plug)
S - Adjustable Short Delay Pickup with Fixed Short Delay Time (l2t Response) or Adjustable Short Delay Time (Flat Response)
G - Adjustable Ground Fault Pickup with Adjustable Ground Fault Delay (Flat Response)
This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Connection | Bolt On |
| Frame Type | N |
| Amperage | 1200 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 65 Kiloampere @ 240VAC, 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC |
| Standard Lug Type |
