Product Description
Specs are as follows:
NC Frame Style, Molded Case Circuit Breaker, Mag Only Non-Interchangeable Trip Unit, 3 Pole, 600VAC @ 50/60HZ, High Interrupting Style, Interrupting Ratings: 42 Kiloampere @ 240VAC, 30 Kiloampere @ 480VAC, 22 Kiloampere @ 600VAC, with 1000 Amp Rating Plug, Without Terminals Standard

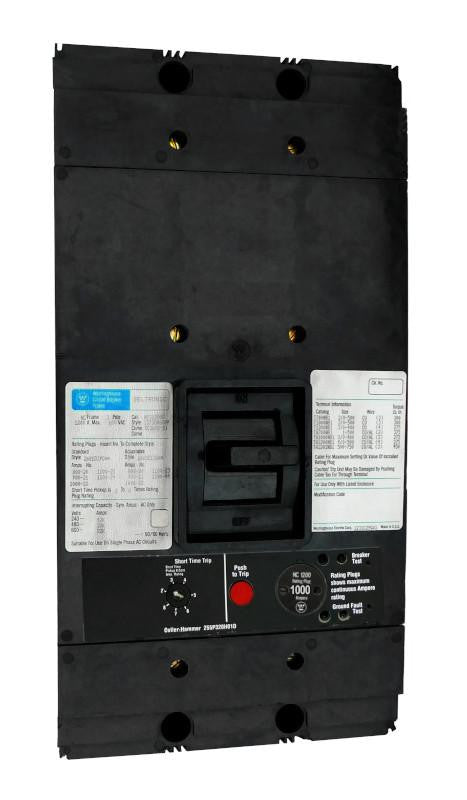

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Westinghouse |
|---|---|
| Warranty | One Year |
| Configuration | 12NC1000 |
| Connection | Bolt On |
| Frame Type | NC |
| Amperage | 1000 |
| Poles | 3 |
| Voltage Max | 600 VAC |
| Interrupting Capacity Rating | 42 Kiloampere @ 240VAC, 30 Kiloampere @ 480VAC, 22 Kiloampere @ 600VAC |
| Trip Setting | 2000-8000 |
| Standard Lug Type | Without Terminals Standard |
