Product Description
Specs are as follows:
NC Frame Style, Molded Case Circuit Breaker, LS Function Non-Interchangeable Trip Unit, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 42 Kiloampere @ 240VAC, 30 Kiloampere @ 480VAC, 22 Kiloampere @ 600VAC, with 1000 Amp Rating Plug, Without Terminals Standard
L – Adjustable Long Delay Pickup (By Adjustable Rating Plug)
S – Adjustable Short Delay Pickup with Fixed Short Delay Time (I2t Response) or Adjustable Short Time (Flat Response)

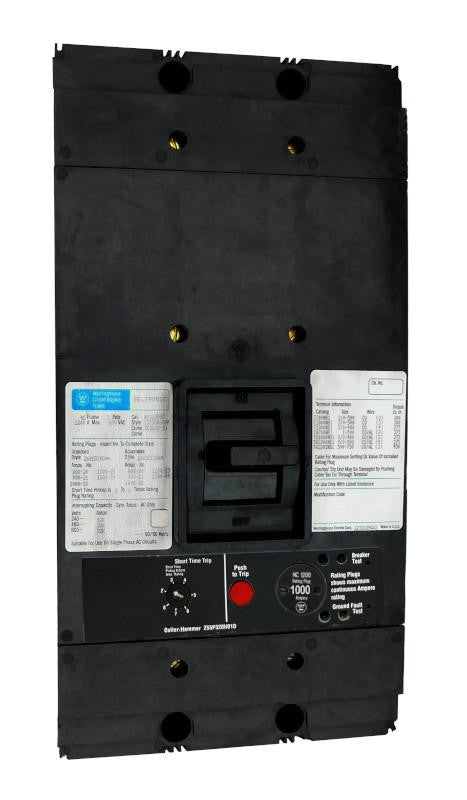

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Westinghouse |
|---|---|
| Warranty | One Year |
| Configuration | 12NC1000 |
| Connection | Bolt On |
| Frame Type | NC |
| Amperage | 1000 |
| Poles | 3 |
| Voltage Max | 600 VAC |
| Interrupting Capacity Rating | 42 Kiloampere @ 240VAC, 30 Kiloampere @ 480VAC, 22 Kiloampere @ 600VAC |
| Trip Setting | 2000-8000 |
| Standard Lug Type | Without Terminals Standard |
