MX36100
Product Description
MX (I-Line) Frame Style, Molded Case Circuit Breaker, 250 Amp Sensor Size, Electronic Non-Interchangeable Trip Unit, LSI Trip Unit Functions, 100 Ampere at 40 Degree Celsius, 3 Pole, Interrupting Ratings: 65 Kiloampere @ 240 VAC, 65 Kiloampere @ 480 VAC, 25 Kiloampere @ 600 VAC, with ARP040 Rating Plug Installed Standard, Load End Terminals Standard

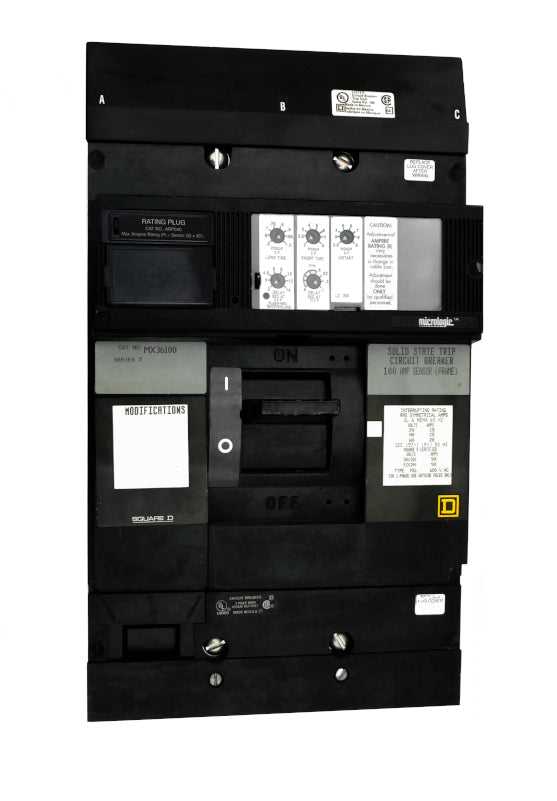

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Square-D |
|---|---|
| Warranty | One Year |
| Connection | Plug In |
| Frame Type | M |
| Amperage | 100 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 65 Kiloampere @ 240 VAC, 65 Kiloampere @ 480 VAC, 25 Kiloampere @ 600 VAC |
| Trip Setting | Adjustable 2.5-8 Times Continuous Ampere Rating |
| Standard Lug Type | Load End |
