MCA3500 (MCA3800F w/500 Amp Rating Plug)

New Surplus

Click for Info
$14,995.00

Certified Reconditioned

Qty in Stock: 1

$2,495.00
Delivery
Free with $500 Order
Get it by

Product Description

Specs are as follows:

MCA Frame Style, Molded Case Circuit Breaker, LSI Function Non-Interchangeable Trip Unit, 3 Pole, 600VAC @ 50/60HZ, High Interrupting Style, Interrupting Ratings: 42 Kiloampere @ 240VAC, 30 Kiloampere @ 480VAC, 22 Kiloampere @ 600VAC, with 500 Amp Rating Plug, Without Terminals Standard

L – Adjustable Long Delay Pickup (By Adjustable Rating Plug)

S – Adjustable Short Delay Pickup with Fixed Short Delay Time (I2t Response) or Adjustable Short Time (Flat Response)

I – Adjustable Instantaneous Pickup by Setting Short Time Delay Time to Instantaneous

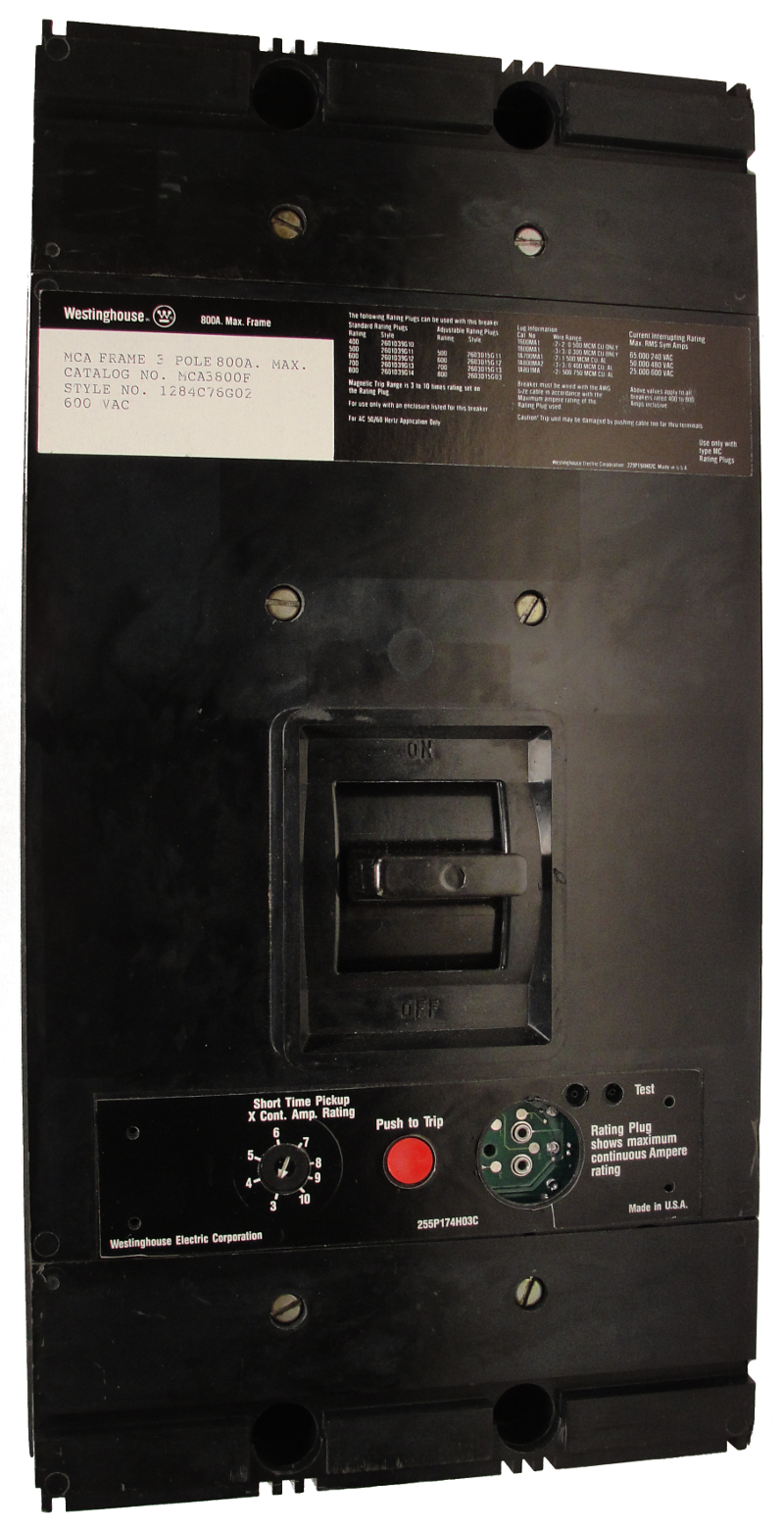

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.

Specifications

Manufacturer Westinghouse
Warranty One Year
Configuration 8MC500
Connection Bolt On
Frame Type M Frame
Amperage 500 Amp
Poles 3
Voltage Max 600V
Interrupting Capacity Rating Interrupting Ratings: 42 Kiloampere @ 240VAC, 30 Kiloampere @ 480VAC, 22 Kiloampere @ 600VAC
Trip Setting 1500-5000
Standard Lug Type Without Terminals Standard
