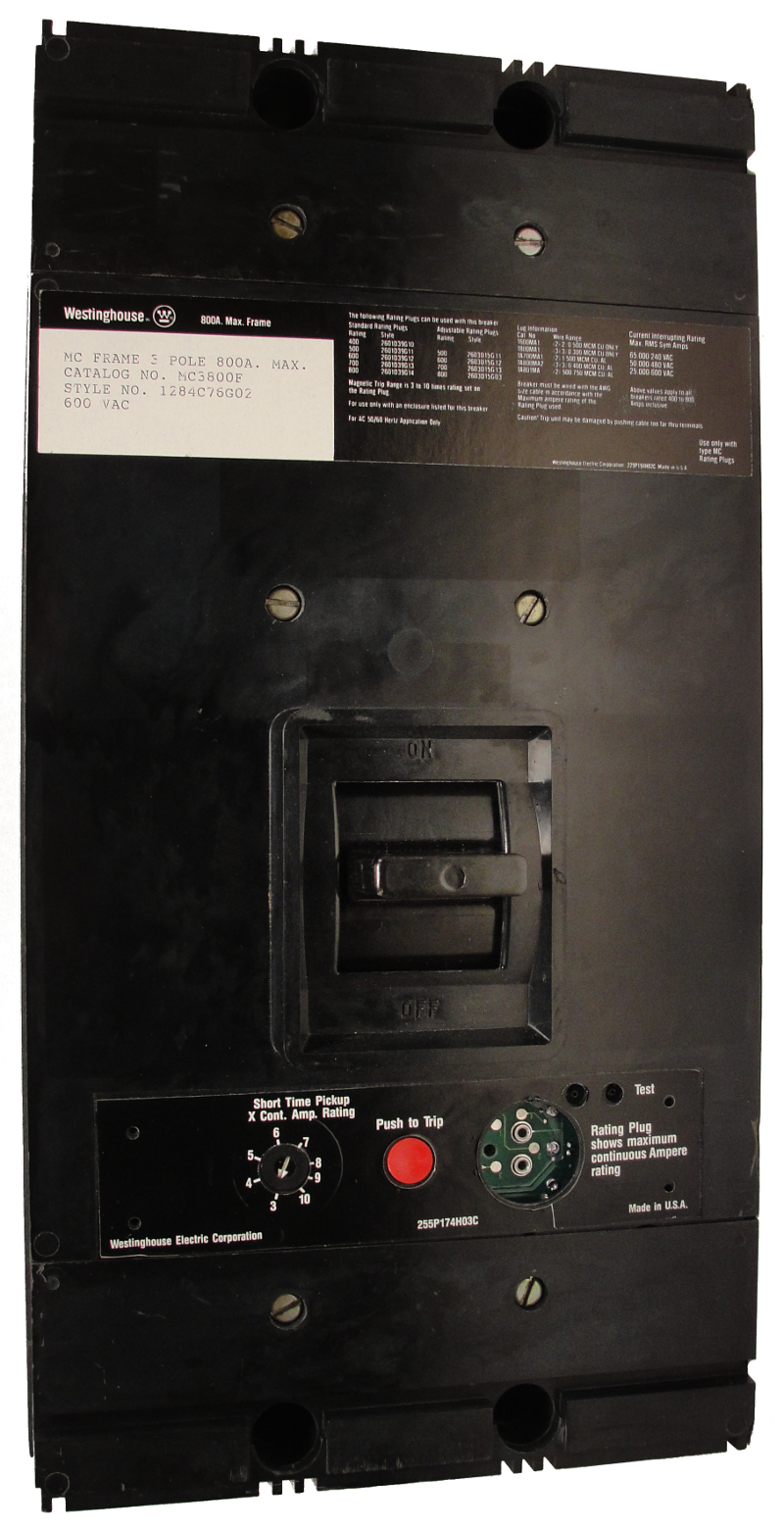

MC3800 (MC3800F w/800 Amp Rating Plug)

Call for Price

New Surplus

Click for Info
$14,995.00

Certified Reconditioned

Click for Info
$1,995.00
Delivery
Free with $500 Order
Get it by

Product Description

Specs are as follows:

MC Frame Style, Molded Case Circuit Breaker, LS Function Non-Interchangeable Trip Unit, 3 Pole, 600VAC @ 50/60HZ, High Interrupting Style, Interrupting Ratings: 42 Kiloampere @ 240VAC, 30 Kiloampere @ 480VAC, 22 Kiloampere @ 600VAC, with 800 Amp Rating Plug, Without Terminals Standard

L – Adjustable Long Delay Pickup (By Adjustable Rating Plug)

S – Adjustable Short Delay Pickup with Fixed Short Delay Time (I2t Response) or Adjustable Short Time (Flat Response)

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.

Specifications

Manufacturer Westinghouse
Warranty One Year
Configuration 8MC800
Connection Bolt On
Frame Type M Frame
Amperage 800
Poles 3
Voltage Max 600V Max
Interrupting Capacity Rating Interrupting Ratings: 42 Kiloampere @ 240VAC, 30 Kiloampere @ 480VAC, 22 Kiloampere @ 600VAC
Trip Setting 2400-8000
Standard Lug Type Without Terminals Standard
