MC3600M (MC3800FM w/600 Amp Rating Plug)
Specs are as follows:
MC Frame Style, Molded Case Circuit Breaker, Magnetic Only Trip Unit, 3 Pole, 600VAC @ 50/60HZ, High Interrupting Style, Interrupting Ratings: 42 Kiloampere @ 240VAC, 30 Kiloampere @ 480VAC, 22 Kiloampere @ 600VAC, with 600 Amp Rating Plug, Without Terminals Standard

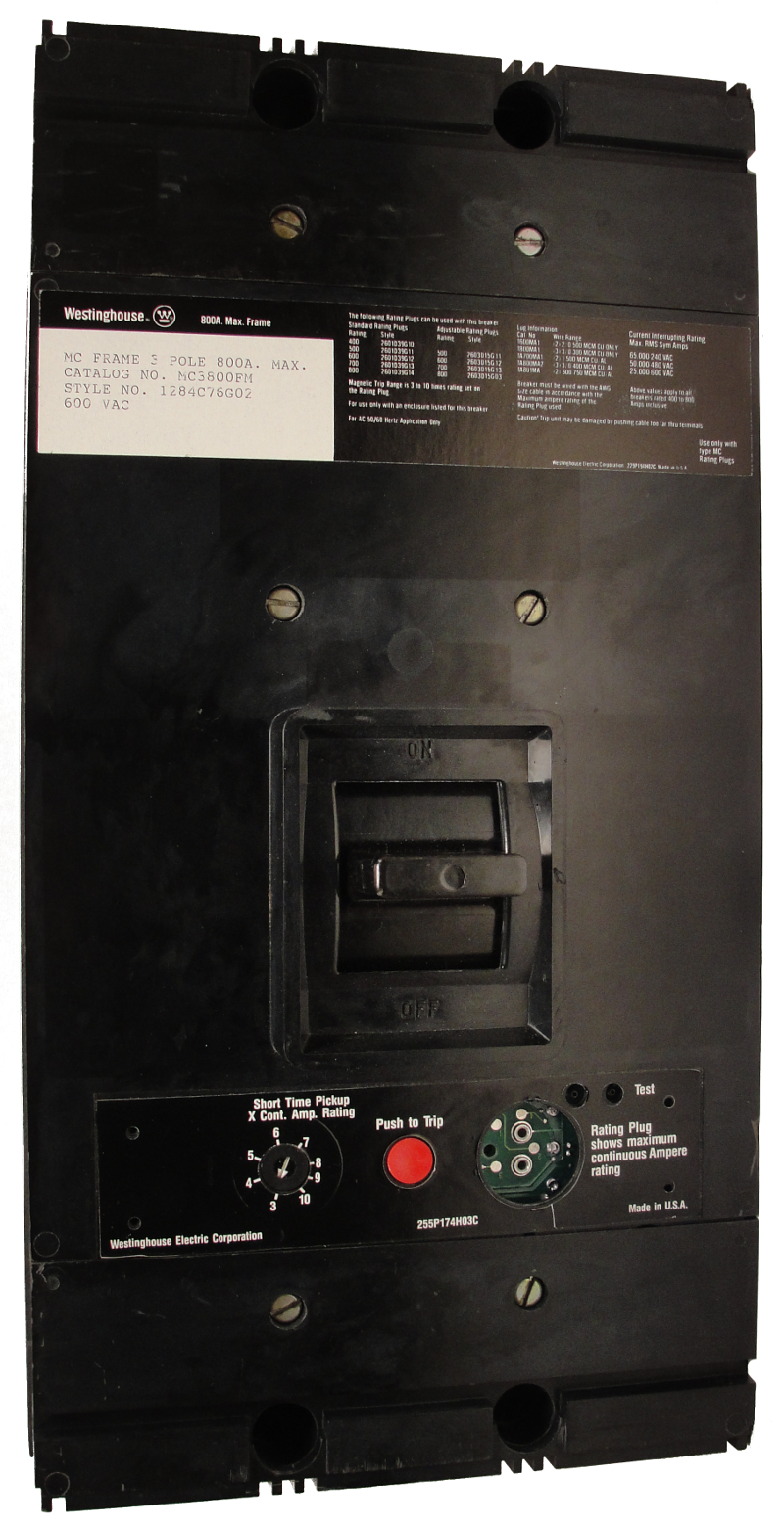

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
|Frame Type||M Frame|
|Voltage Max||600V Max|
|Interrupting Capacity Rating||42 Kiloampere @ 240VAC, 30 Kiloampere @ 480VAC, 22 Kiloampere @ 600VAC|
|Standard Lug Type||Without Terminals Standard|
