MAL365001121
Product Description

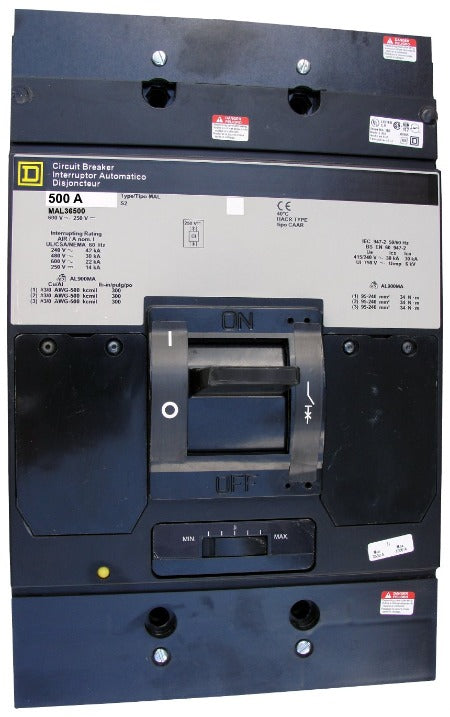

MAL Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Non-interchangeable Trip Unit, 500 Ampere at 40 Degree Celsius, 3 Pole, Interrupting Ratings: 42 Kiloampere @ 240 VAC, 30 Kiloampere @ 480 VAC, 22 Kiloampere @ 600 VAC, 14 Kiloampere @ 250 VDC, Line and Load End Terminals Standard.
This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Square-D |
|---|---|
| Warranty | One Year |
| Connection | Bolt On |
| Frame Type | M |
| Amperage | 500 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 42 Kiloampere @ 240 VAC, 30 Kiloampere @ 480 VAC, 22 Kiloampere @ 600 VAC, 14 Kiloampere @ 250 VDC |
| Trip Setting | 2500-5000 |
| Standard Lug Type | Line and Load End |
Certified Reconditioned
Qty in Stock: 1
$2,995.00
