Look under Parts & Accessories or follow the links below to order accessories used to create additional configurations for this unit.
1. Auxiliary Switches
2. Shunt Trips
3. Terminal/Lug Kits
4. Undervoltage Releases (UVRs)
Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
MAL Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Non-interchangeable Trip Unit, 400 Ampere at 40 Degree Celsius, 3 Pole, Interrupting Ratings: 42 Kiloampere @ 240 VAC, 30 Kiloampere @ 480 VAC, 22 Kiloampere @ 600 VAC, 14 Kiloampere @ 250 VDC, Line and Load End Terminals Standard.
1. Auxiliary Switches
2. Shunt Trips
3. Terminal/Lug Kits
4. Undervoltage Releases (UVRs)
Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Product Description

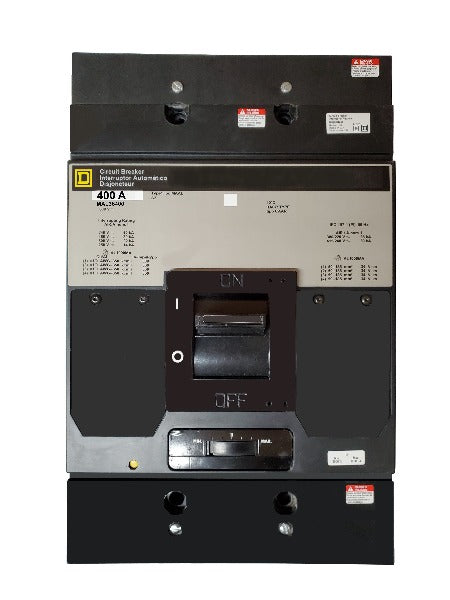

MAL Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Non-interchangeable Trip Unit, 400 Ampere at 40 Degree Celsius, 3 Pole, Interrupting Ratings: 42 Kiloampere @ 240 VAC, 30 Kiloampere @ 480 VAC, 22 Kiloampere @ 600 VAC, 14 Kiloampere @ 250 VDC, Line and Load End Terminals Standard.
Specifications
| Manufacturer | Square-D |
|---|---|
| Warranty | One Year |
| Connection | Bolt On |
| Frame Type | M |
| Amperage | 400 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 42 Kiloampere @ 240 VAC, 30 Kiloampere @ 480 VAC, 22 Kiloampere @ 600 VAC, 14 Kiloampere @ 250 VDC |
| Trip Setting | 2000-4000 |
| Standard Lug Type | Line and Load End |
