LXIL36100G

Call for Price

New Surplus

Click for Info
$6,995.00

Certified Reconditioned

Click for Info
$3,435.00

Product Description

Specs are as follows:

LXL Frame Style, Molded Case Circuit Breaker, Current Limiting, 100% Rated, 250 Amp Sensor Size, Electronic Non-interchangeable Trip Unit, LSIG Trip Unit Functions, 100 Ampere at 40 Degree Celsius, 3 Pole, Interrupting Ratings: 200 Kiloampere @ 240 VAC, 200 Kiloampere @ 480 VAC, 100 Kiloampere @ 600 VAC, with ARP040 Rating Plug Installed Standard, Line and Load End Terminals Standard

Look under Parts & Accessories to order accessories used to create additional configurations for this unit.

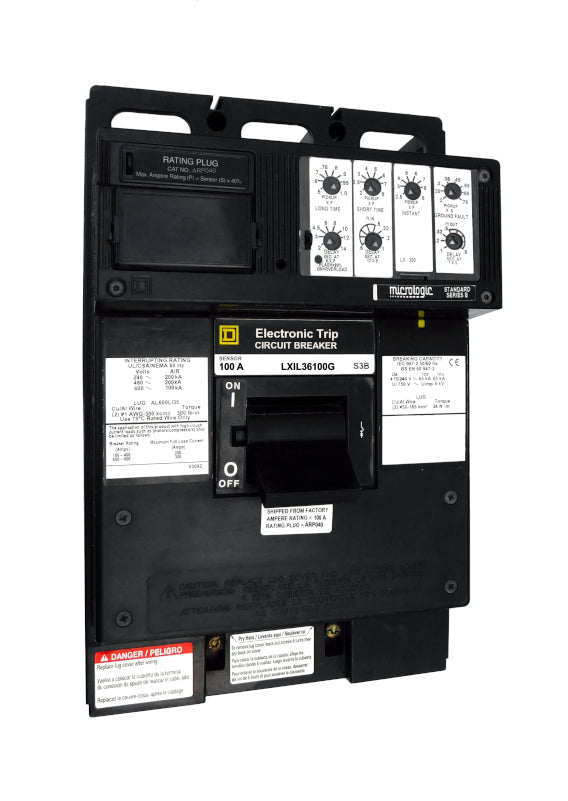

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.

Specifications

Manufacturer Square-D
Warranty One Year
Connection Bolt On
Frame Type L
Amperage 100
Poles 3
Voltage Max 600
Interrupting Capacity Rating 200 Kiloampere @ 240 VAC, 200 Kiloampere @ 480 VAC, 100 Kiloampere @ 600 VAC
Standard Lug Type Line and Load
