Product Description
Specs are as follows:
LXIL Frame Style, Molded Case Circuit Breaker, Current Limiting, 100% Rated, 250 Amp Sensor Size, Electronic Non-interchangeable Trip Unit, LSI Trip Unit Functions, 100 Ampere at 40 Degree Celsius, 3 Pole, Interrupting Ratings: 200 Kiloampere @ 240 VAC, 200 Kiloampere @ 480 VAC, 100 Kiloampere @ 600 VAC, with ARP040 Rating Plug Installed Standard, Line and Load End Terminals Standard

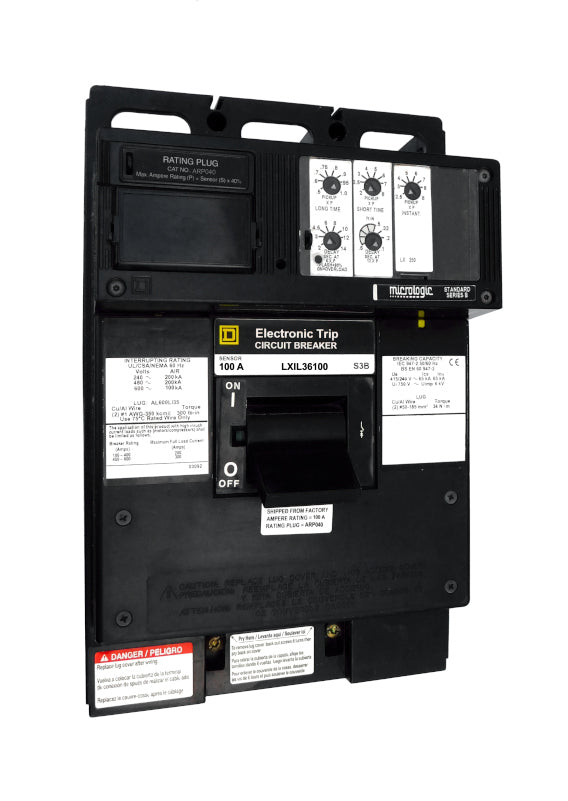

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Square-D |
|---|---|
| Warranty | One Year |
| Connection | Bolt On |
| Frame Type | L |
| Amperage | 100 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 200 Kiloampere @ 240 VAC, 200 Kiloampere @ 480 VAC, 100 Kiloampere @ 600 VAC |
| Standard Lug Type | Line and Load |
