Specs are as follows:
LXI (I-Line) Frame Style, Molded Case Circuit Breaker, Current Limiting, 100% Rated, 600 Amp Max Frame, Electronic Non-interchangeable Trip Unit, LSI Trip Unit Functions, 200 Ampere at 40 Degree Celsius, 3 Pole, Interrupting Ratings: 200 Kiloampere @ 240 VAC, 200 Kiloampere @ 480 VAC, 100 Kiloampere @ 600 VAC, with ARP080 Rating Plug Installed Standard, Load End Terminals Standard

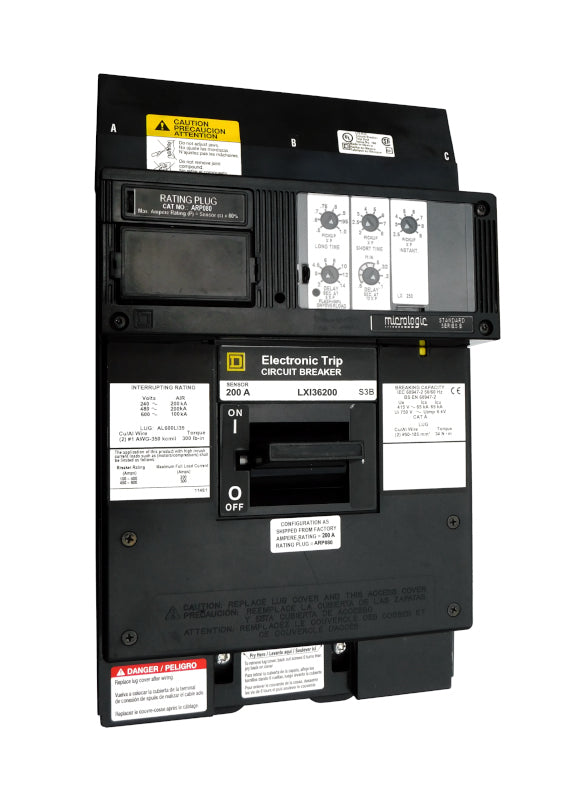

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
|Interrupting Capacity Rating||200 Kiloampere @ 240 VAC, 200 Kiloampere @ 480 VAC, 100 Kiloampere @ 600 VAC|
|Standard Lug Type||Load End|
